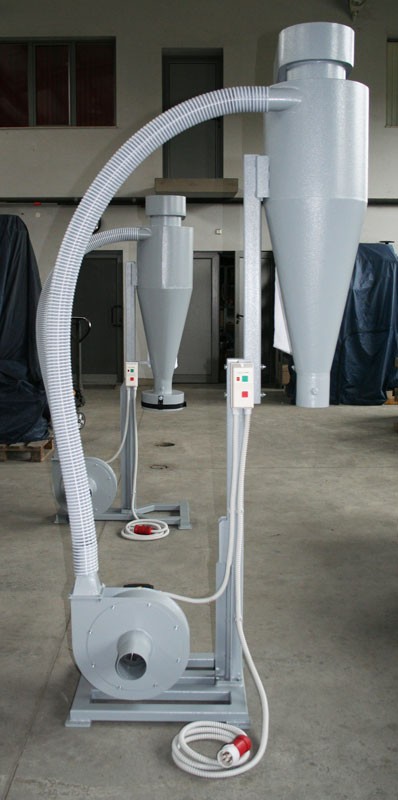

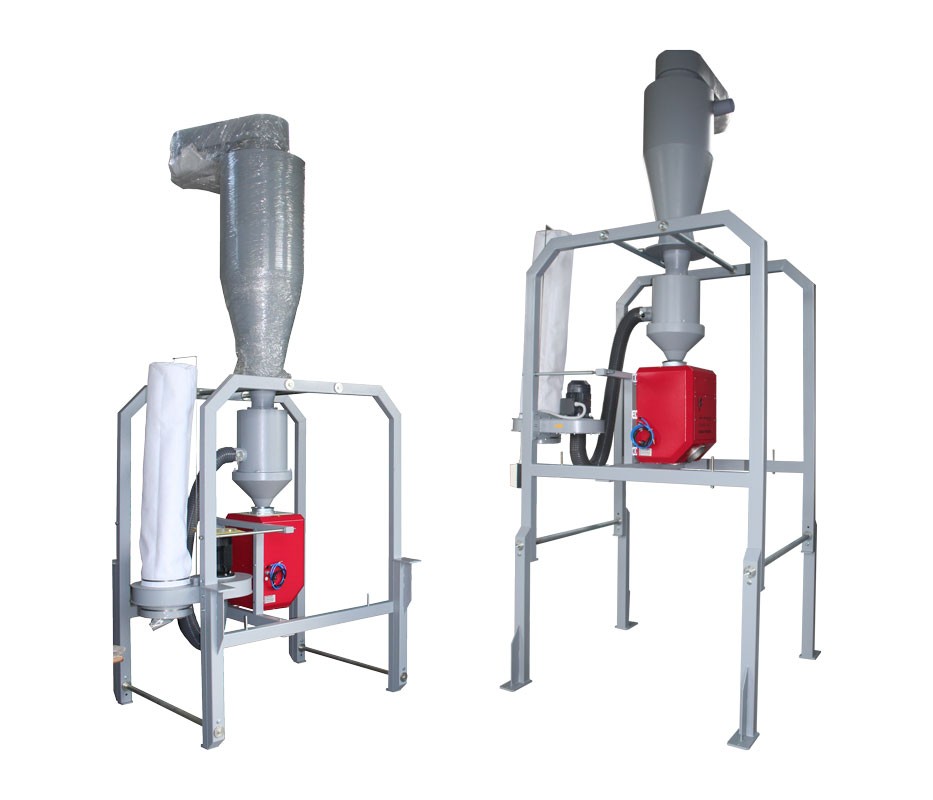

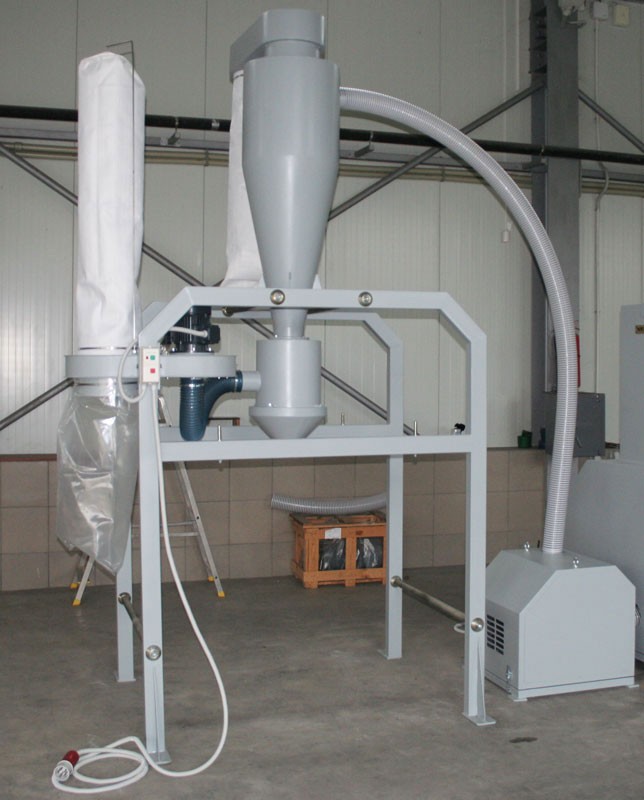

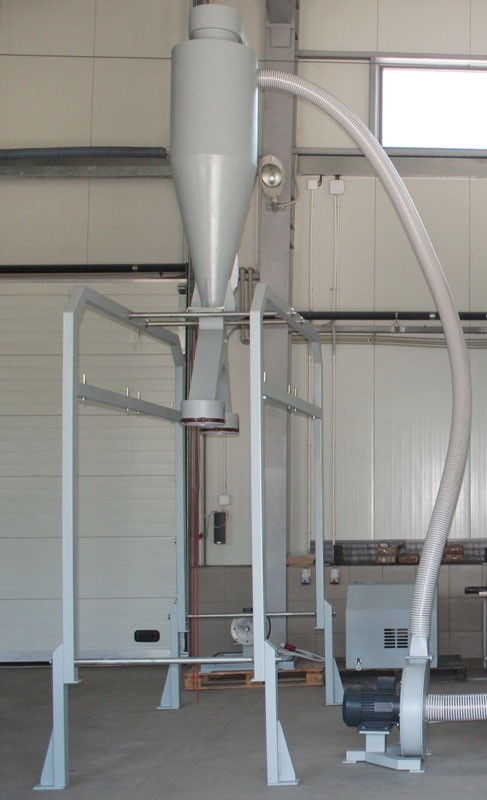

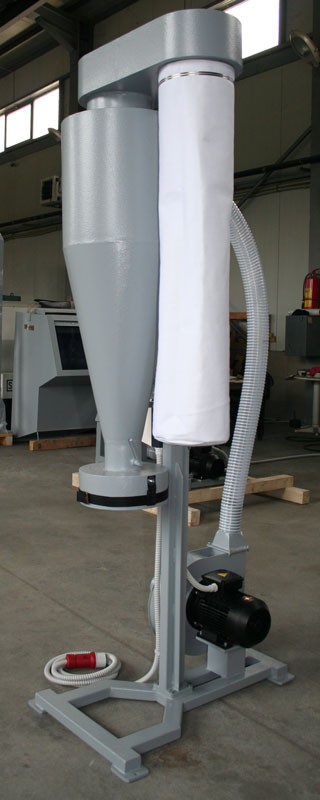

Our suction groups are intended for evacuation of the grinded material of the plastic granulatorand its transportation to a big bag, mesh, octabin, etc.

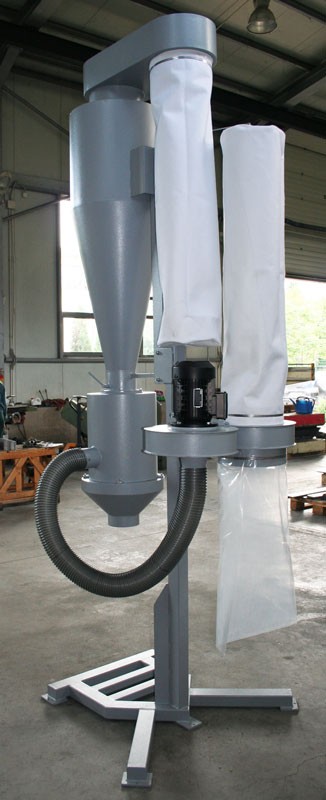

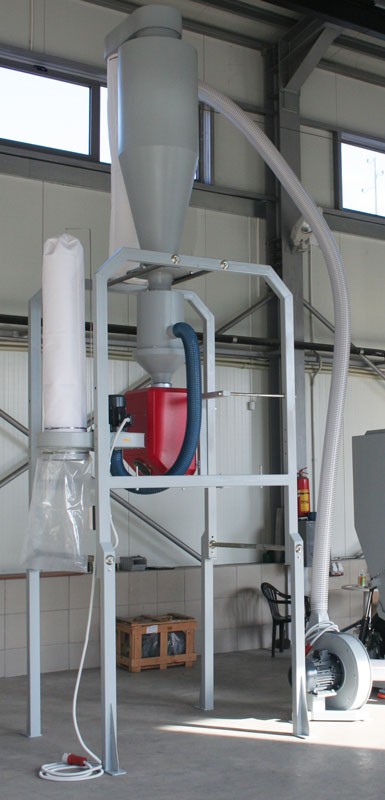

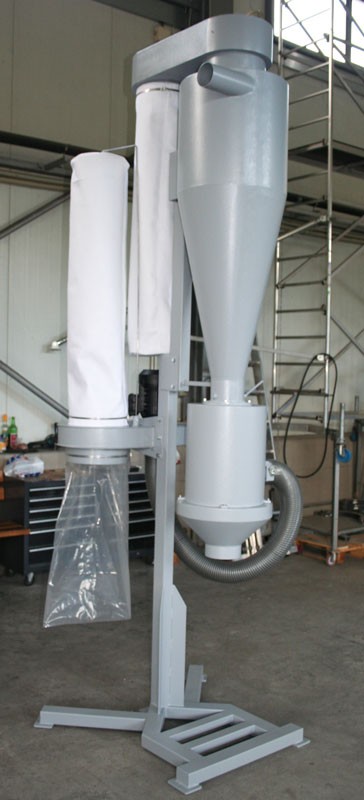

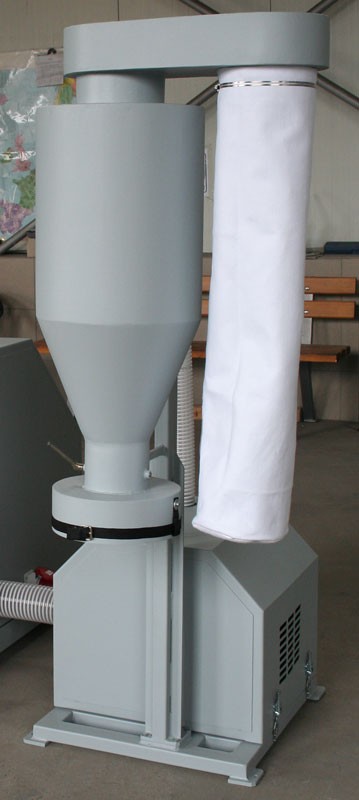

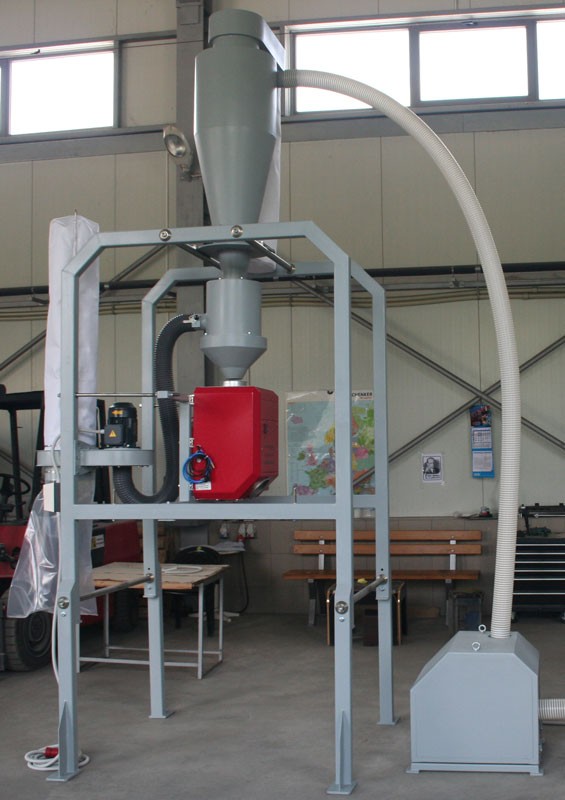

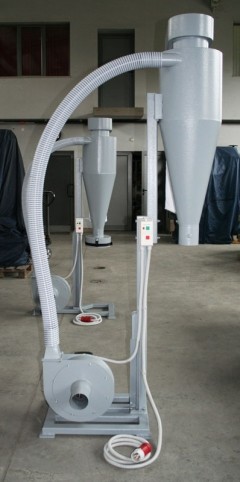

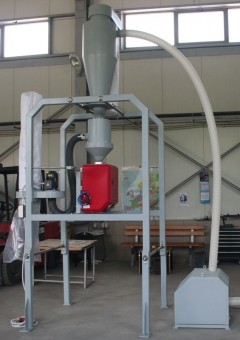

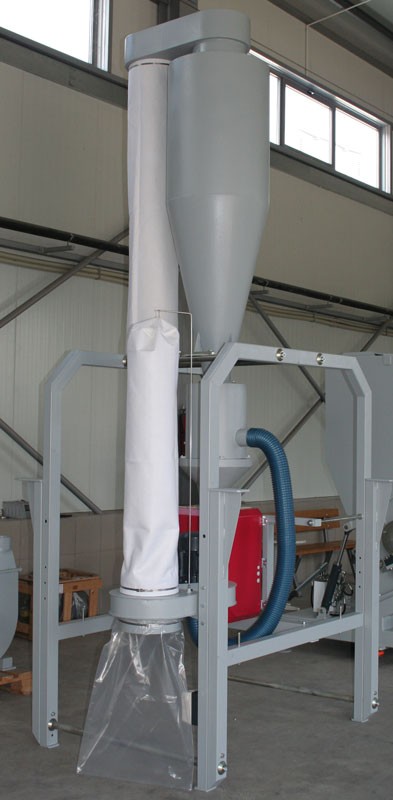

The suction groups offered by VESPA consist of transport ventilator, bunker cyclone with station. On customers request the same can be equipped additionally with dust separator and metal separator. VESPA has six standard sizes of suction groups.
MODEL PT0.75/280 PT1.5/300 PT4.0/350 PT5.5/420 PT7.5/500 PT11/600
VENTILATOR kW 0.75 1.5 4.0 5.5 7.5 11.0
CYCLONE mm ø360 ø360 ø480 ø480 ø600 ø600

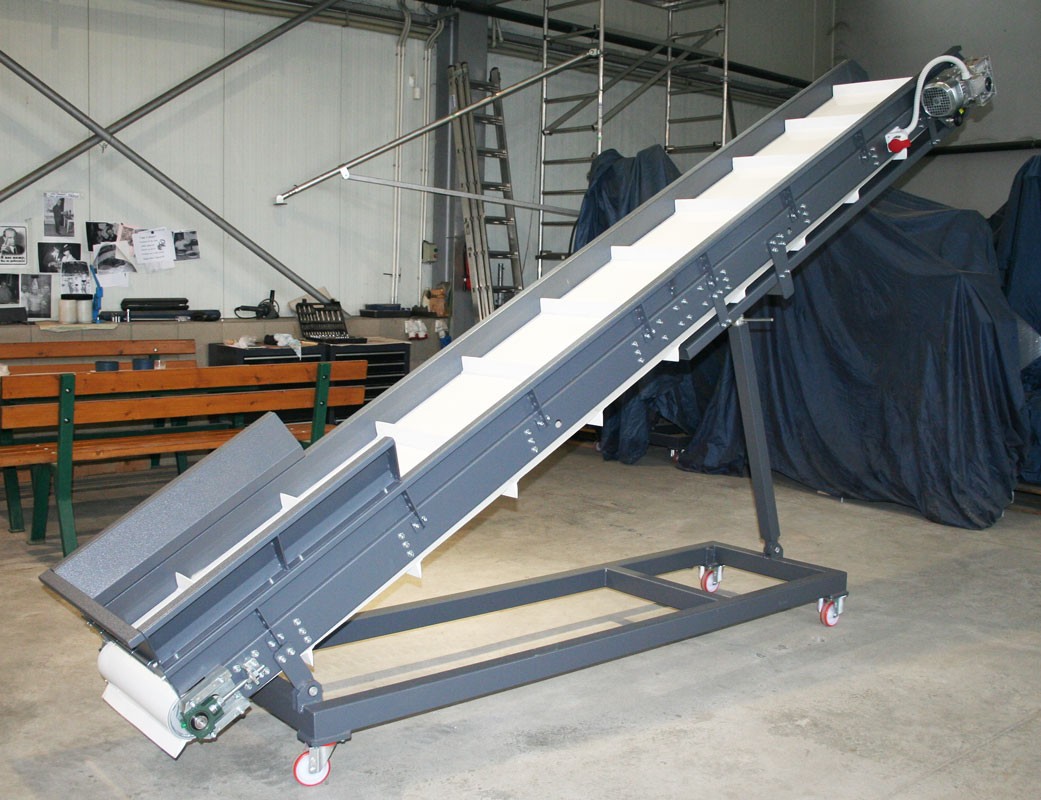

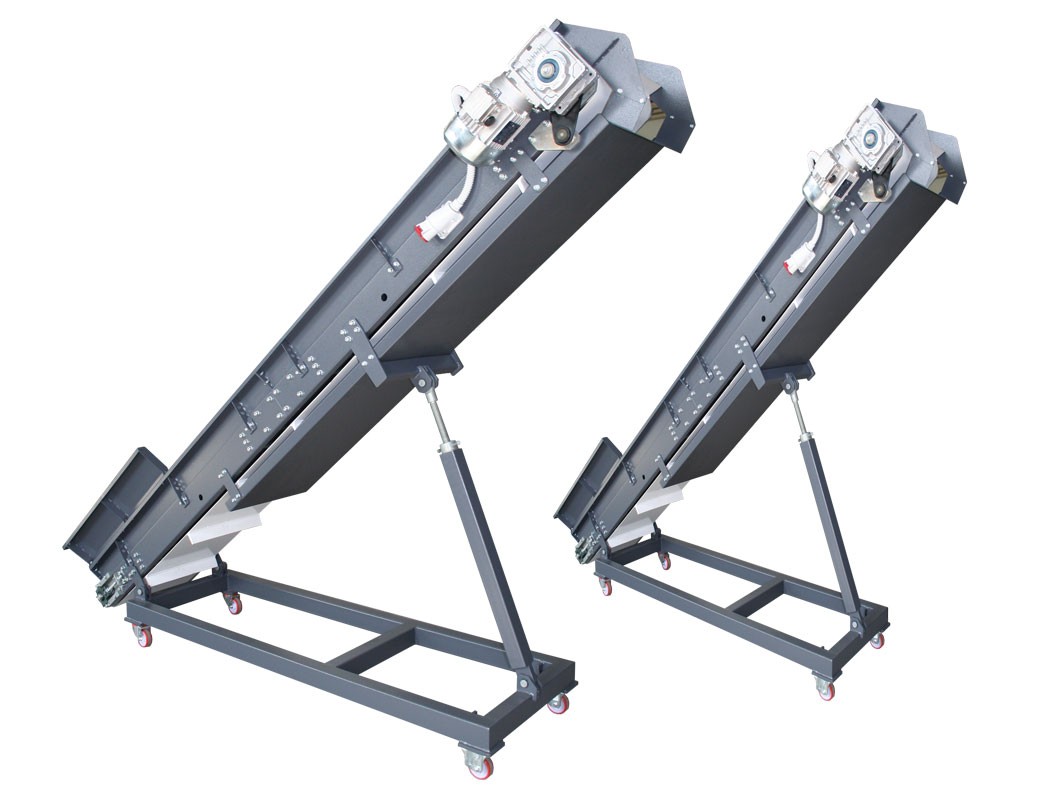

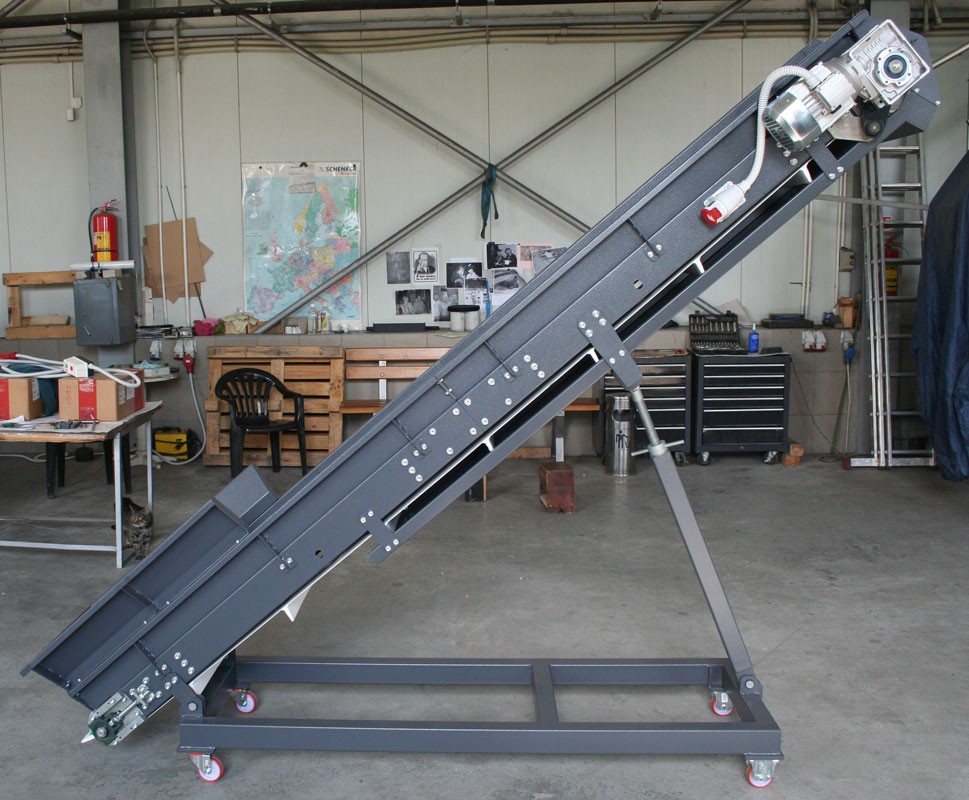

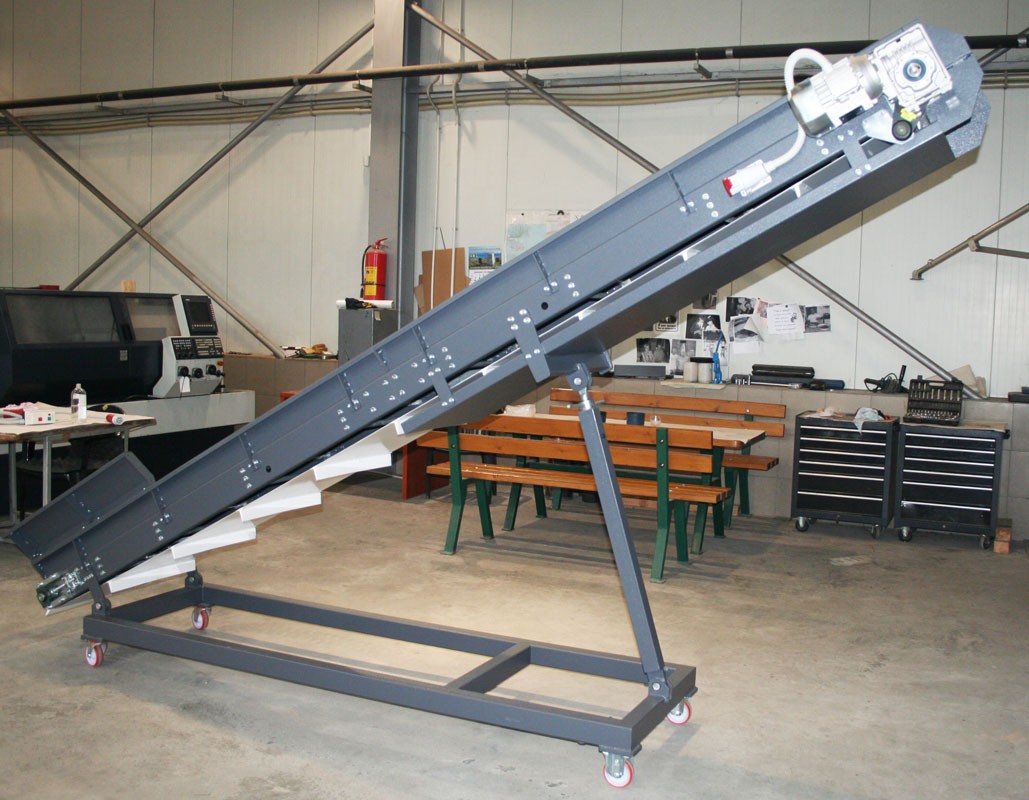

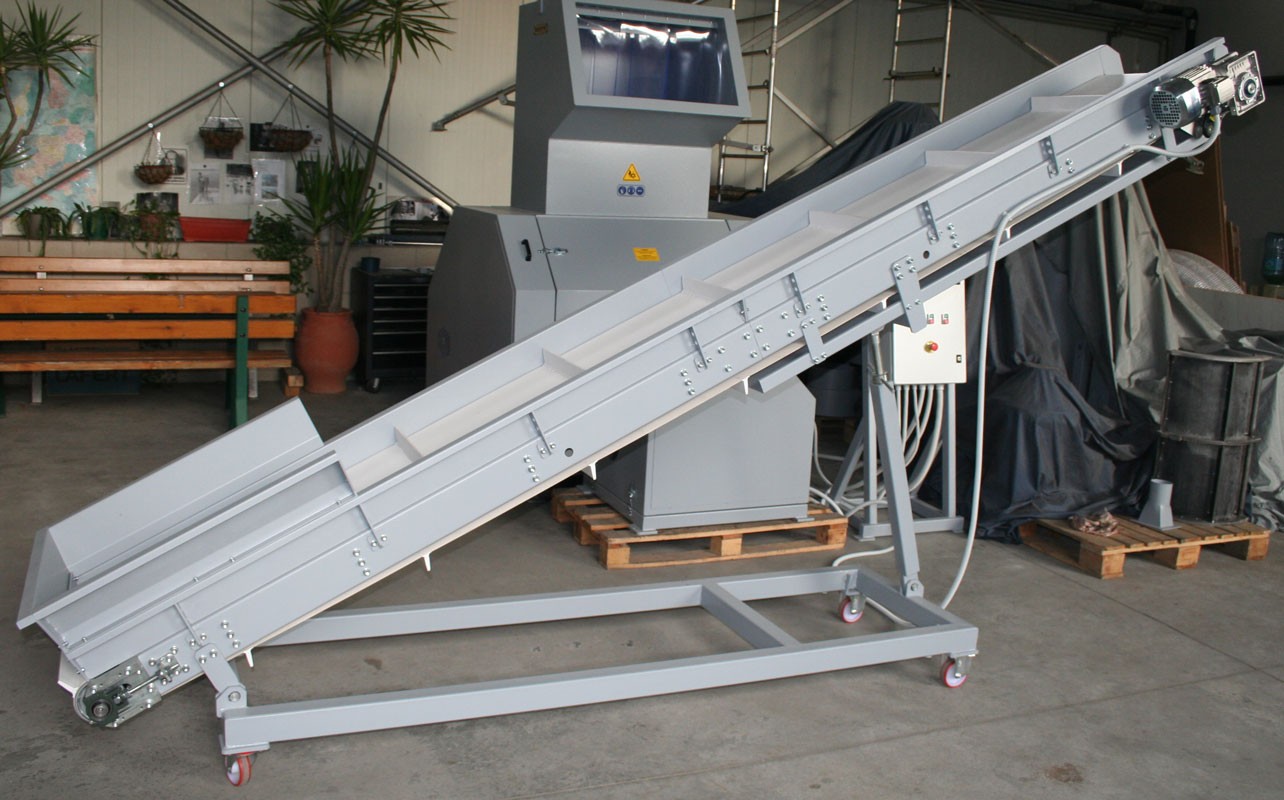

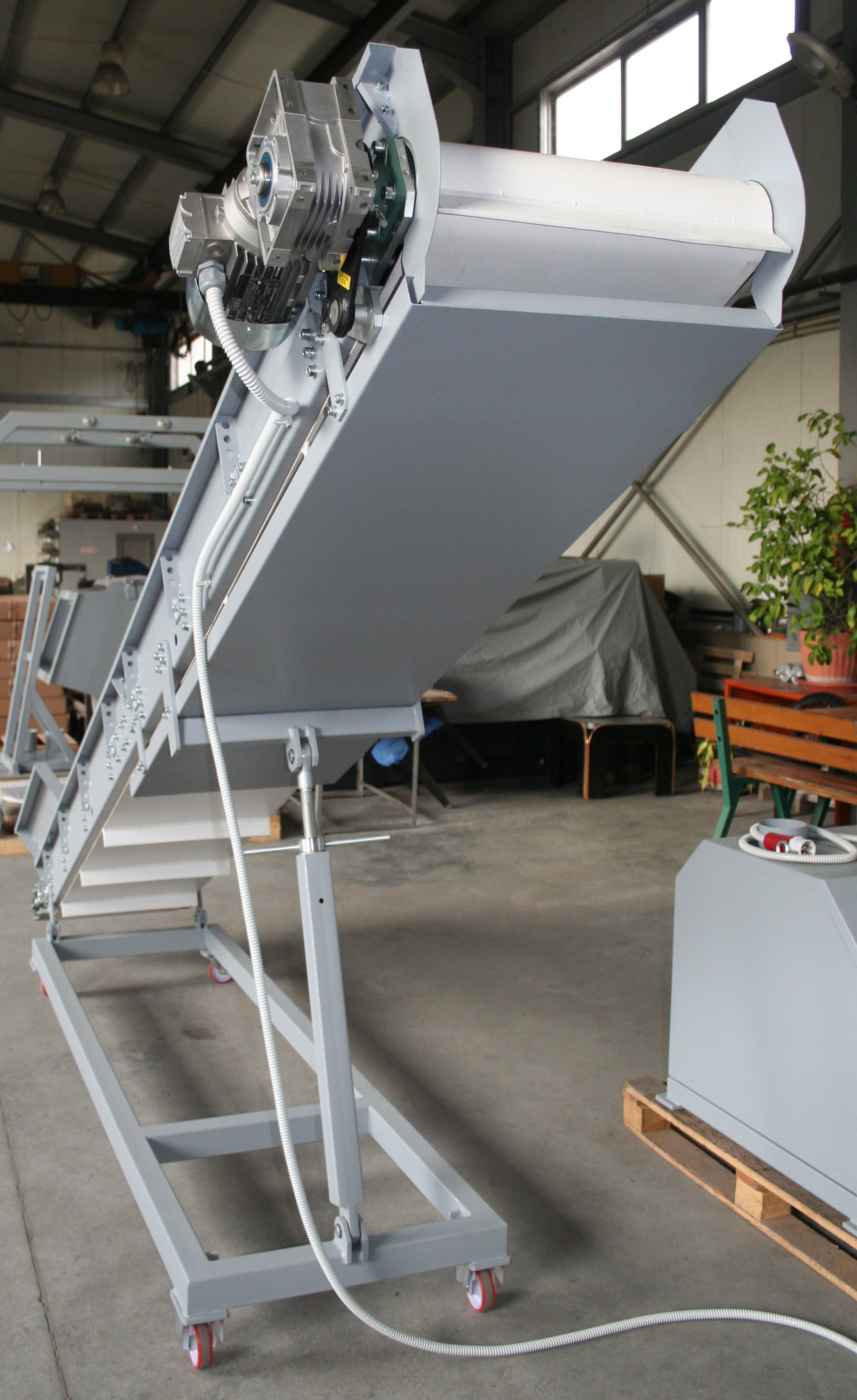

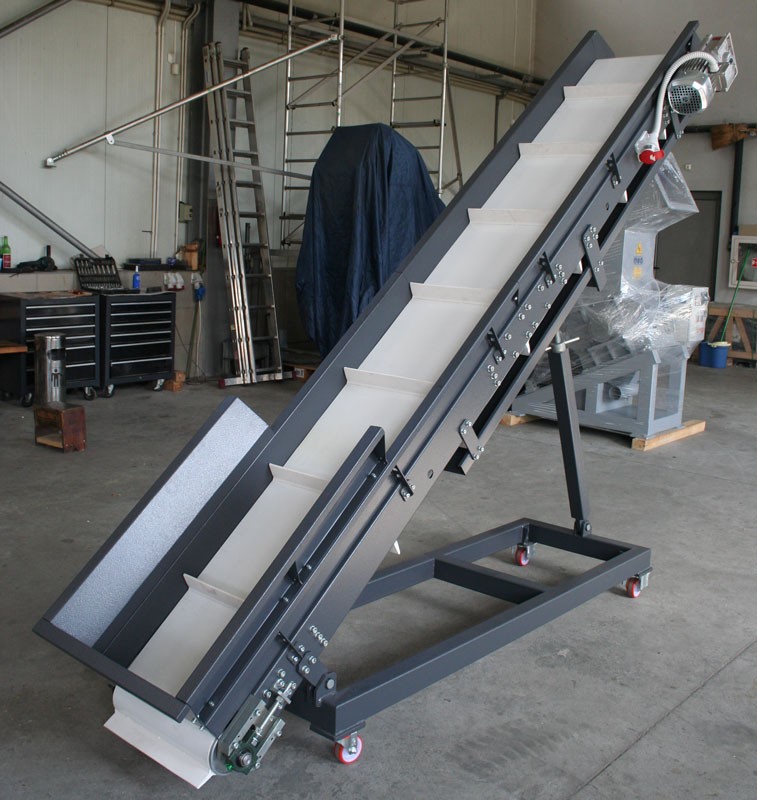

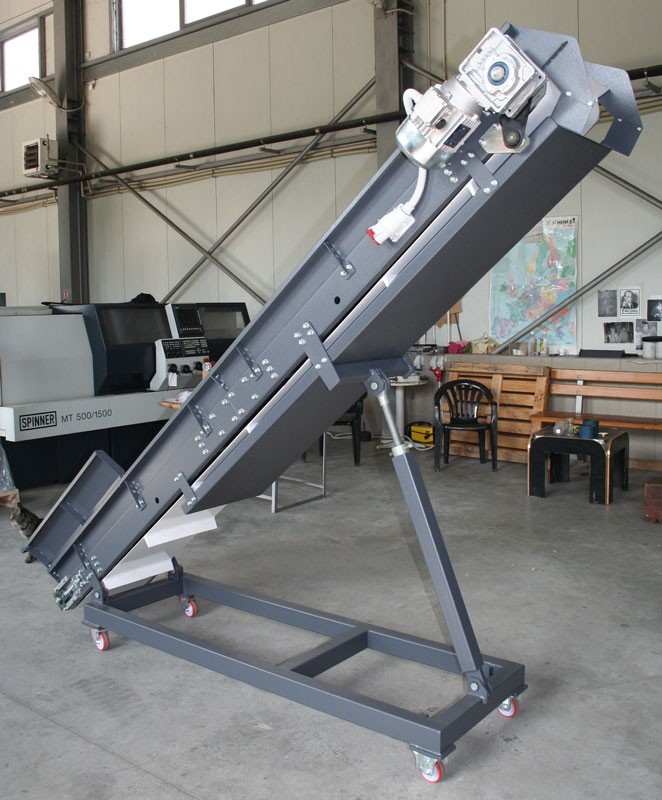

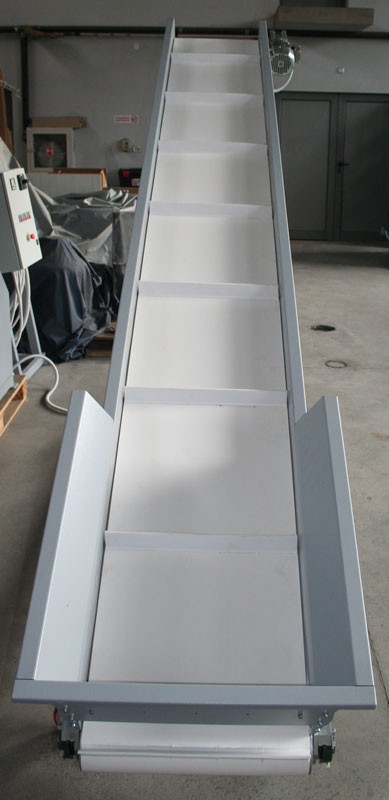

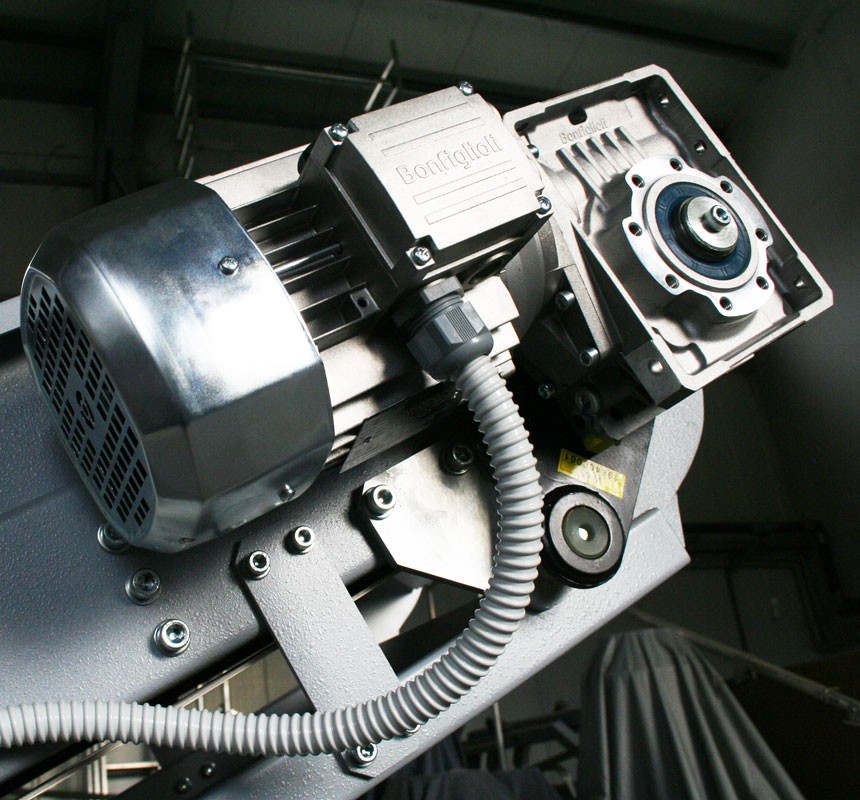

The belt conveyors are used for feeding of the plastic granulator with plastic parts which are intended to be grinded. When combined with the machine there is protection of the plastic granulator against overloading with VEMA controller. Our belt conveyors improve the comfort of operation, ease the operator and guarantee the even feeding of material.
MODEL LT400/3000/0.55 LT500/4000/0.75
WORKING WIDTH mm 400 500
WORKING LENGTH mm 3000 4000
MAX.WORKING SPEED m/min 15 15
MAX.LOADING HEIGHT mm 1950 2200
POWER kW 0.55 0.75
WEIGHT kg 250 320
