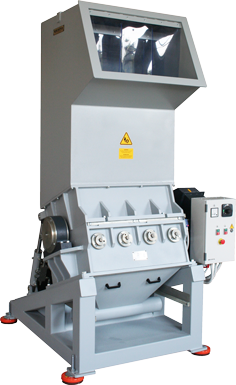

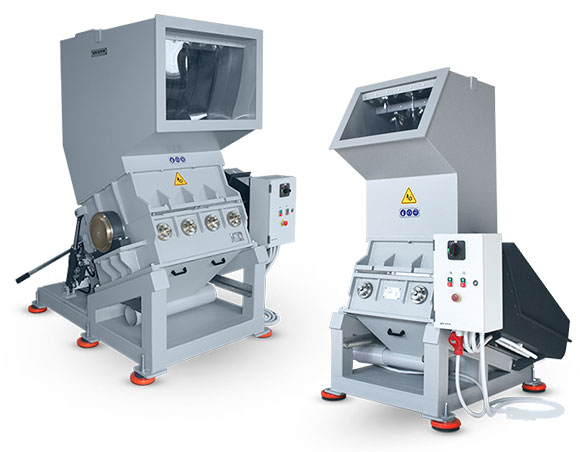

PLASTIC GRANULATORS Features
|
|

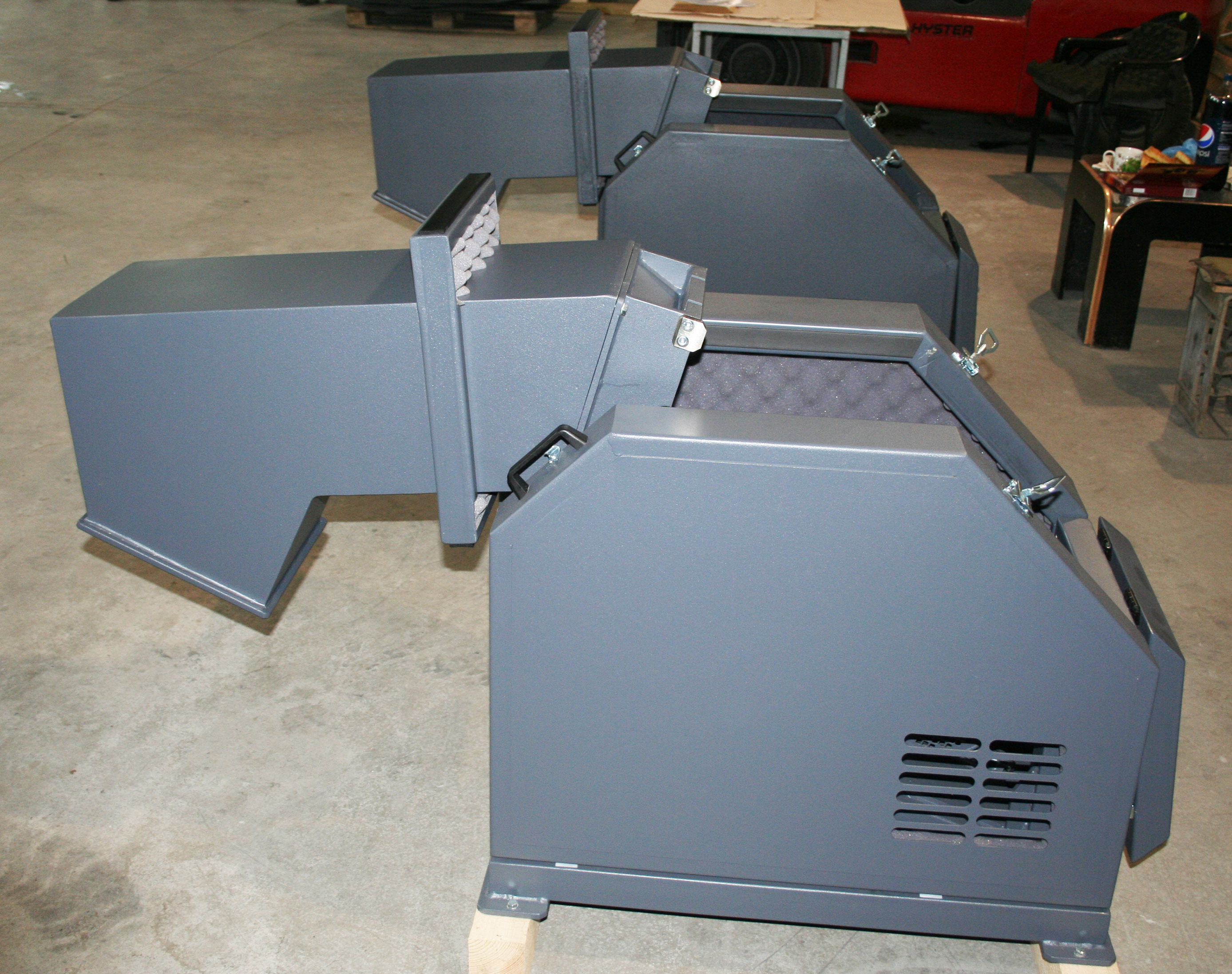

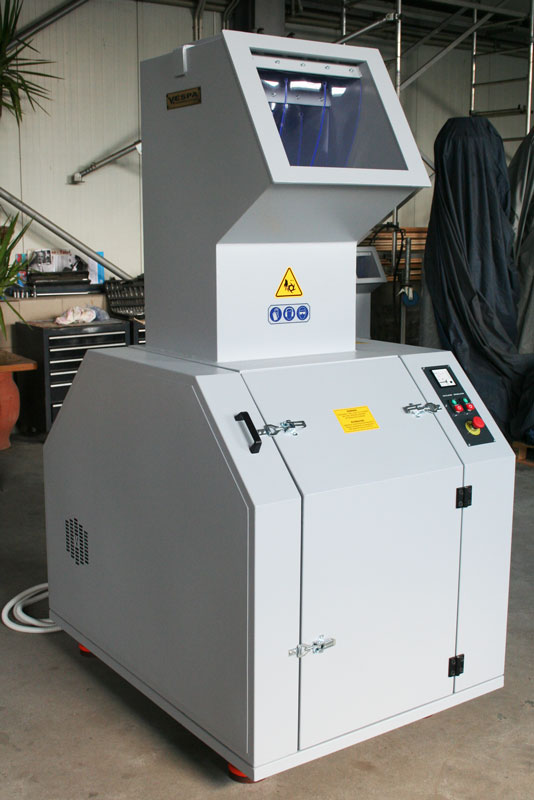

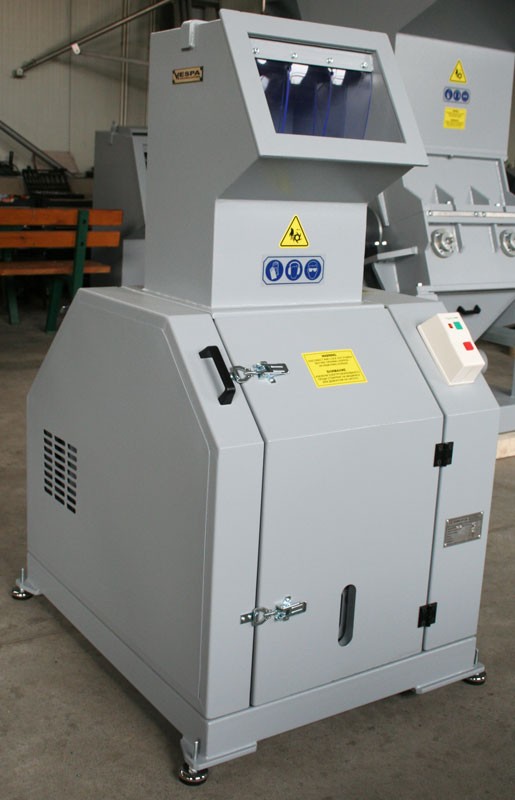

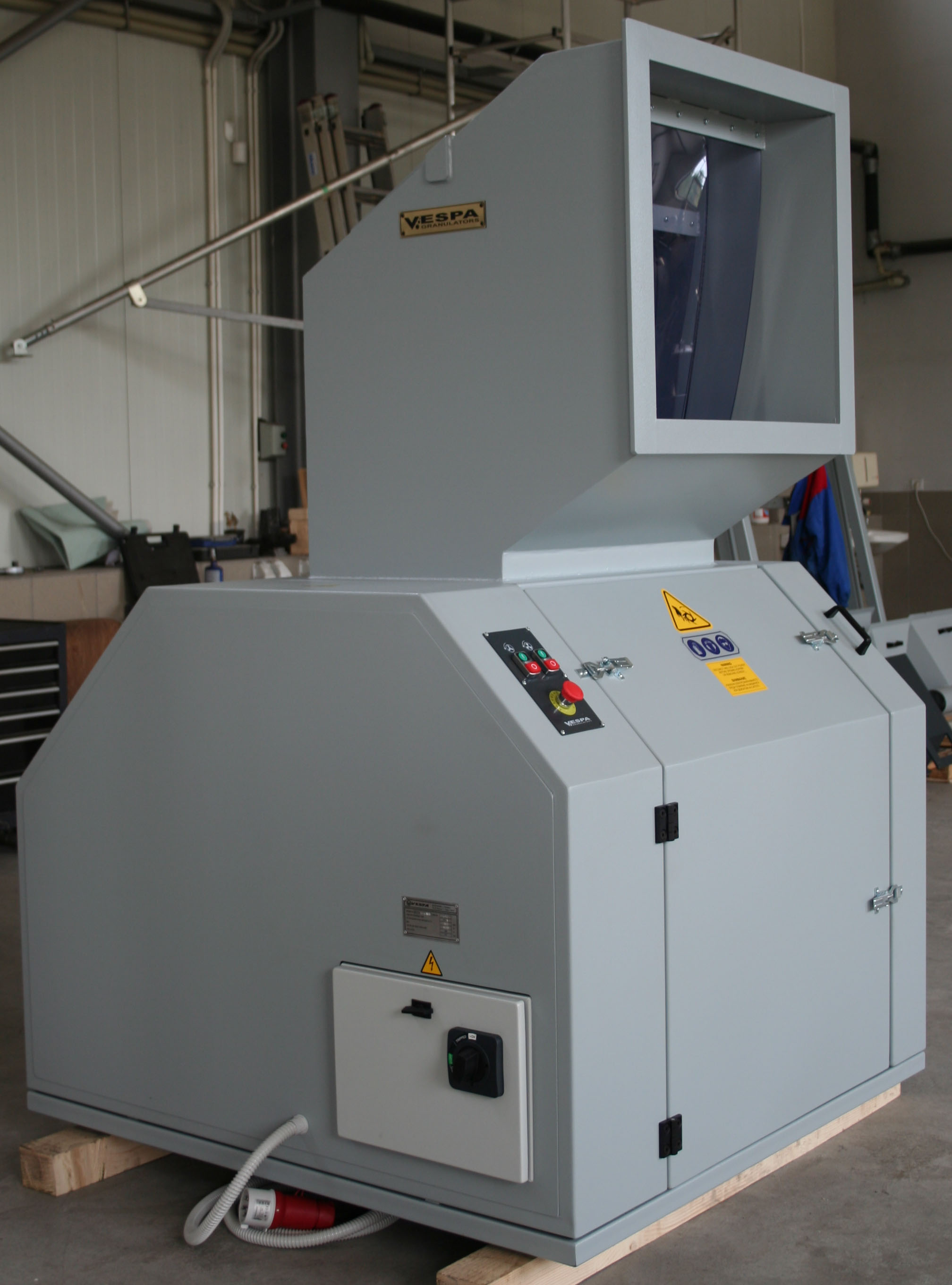

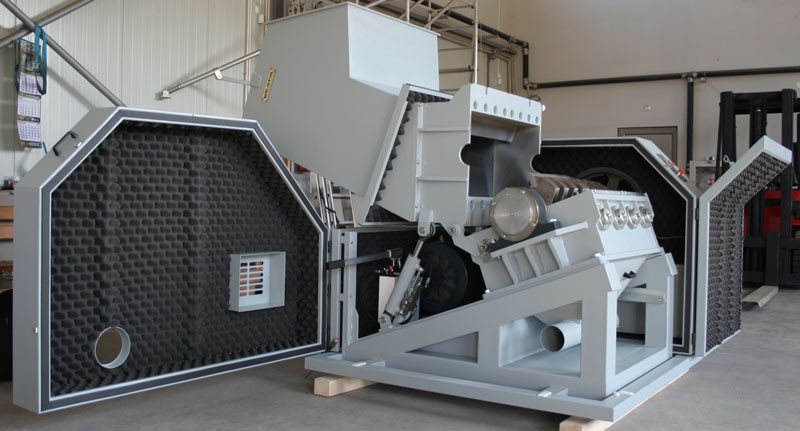

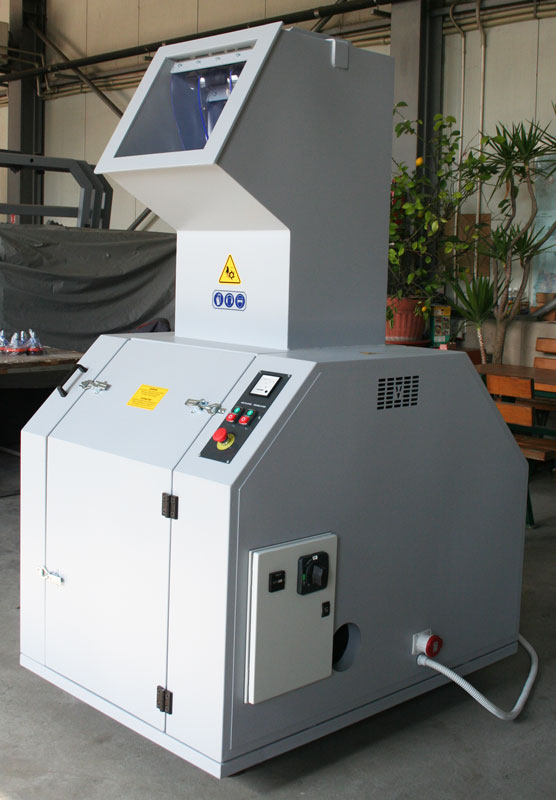

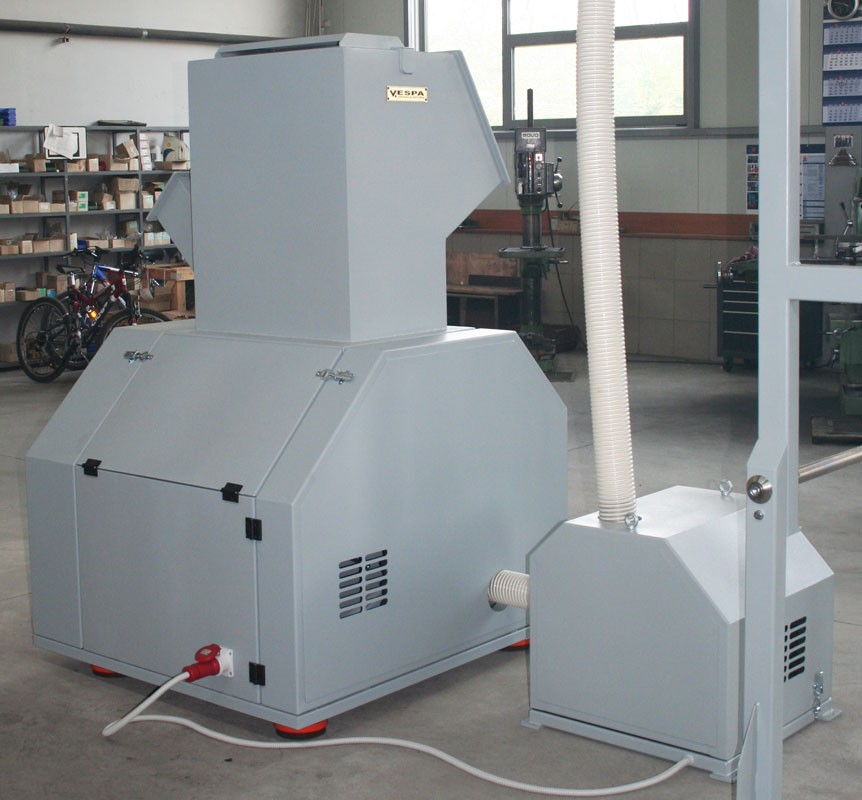

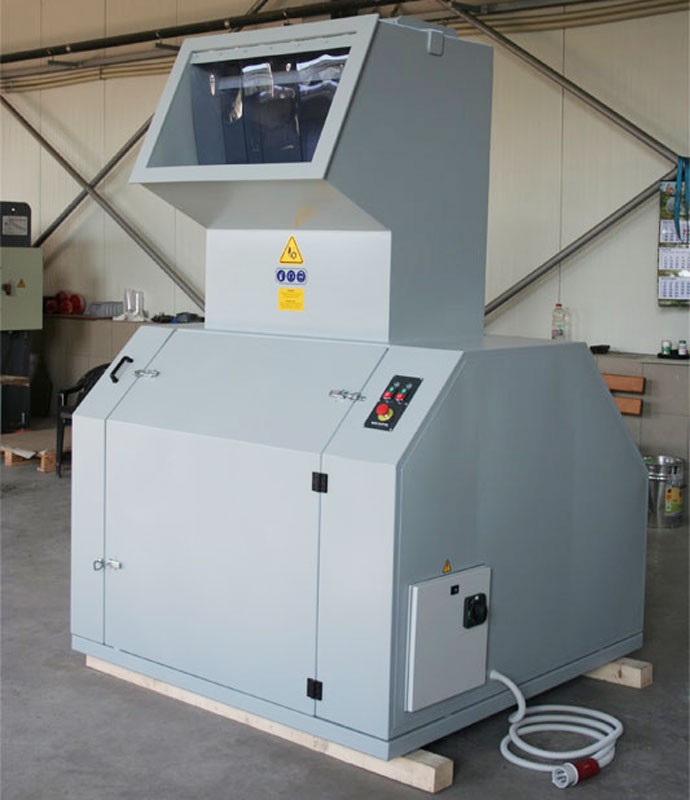

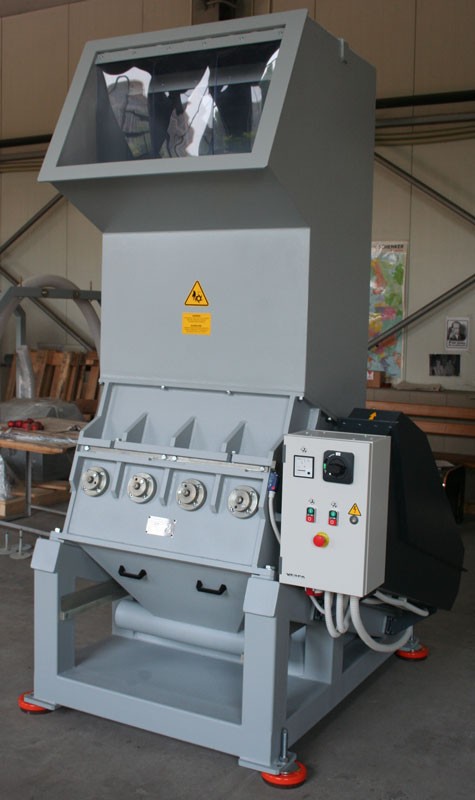

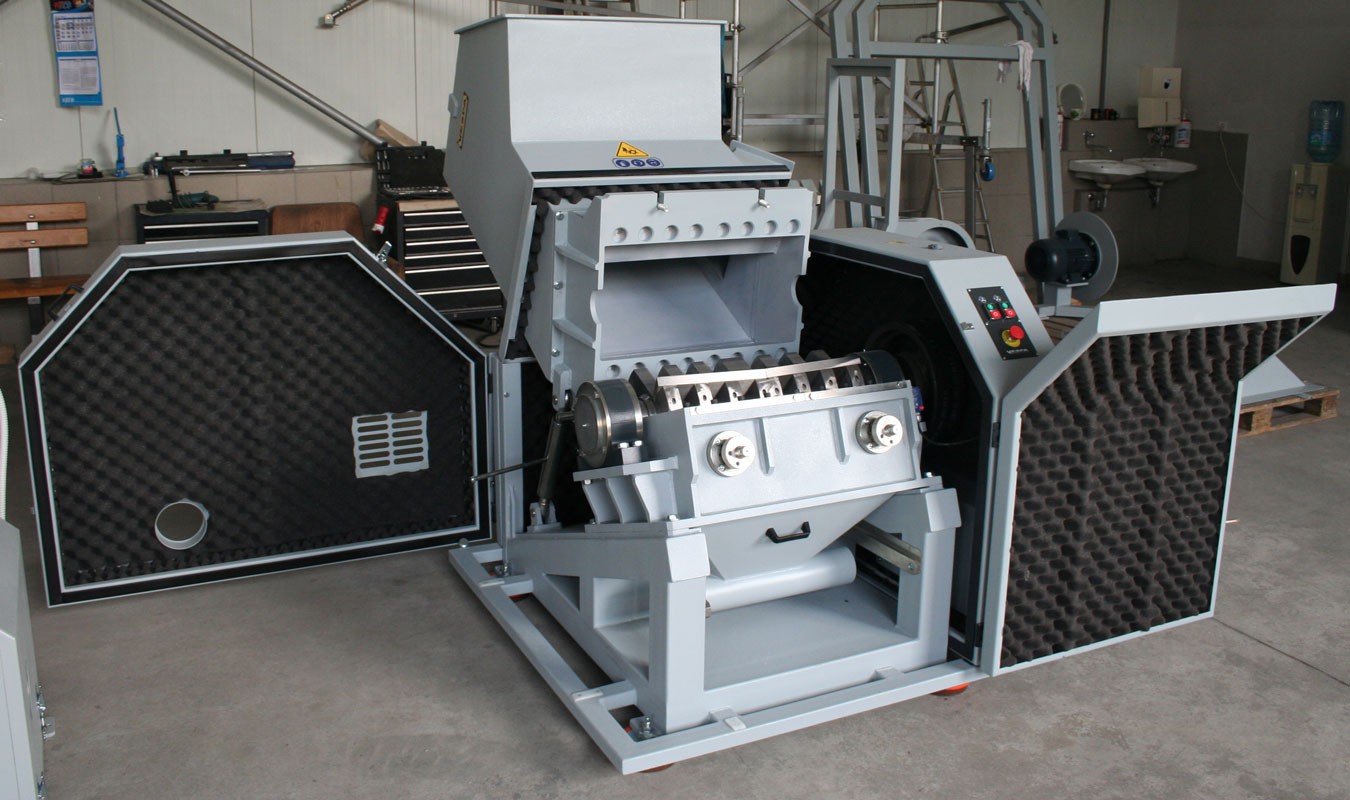

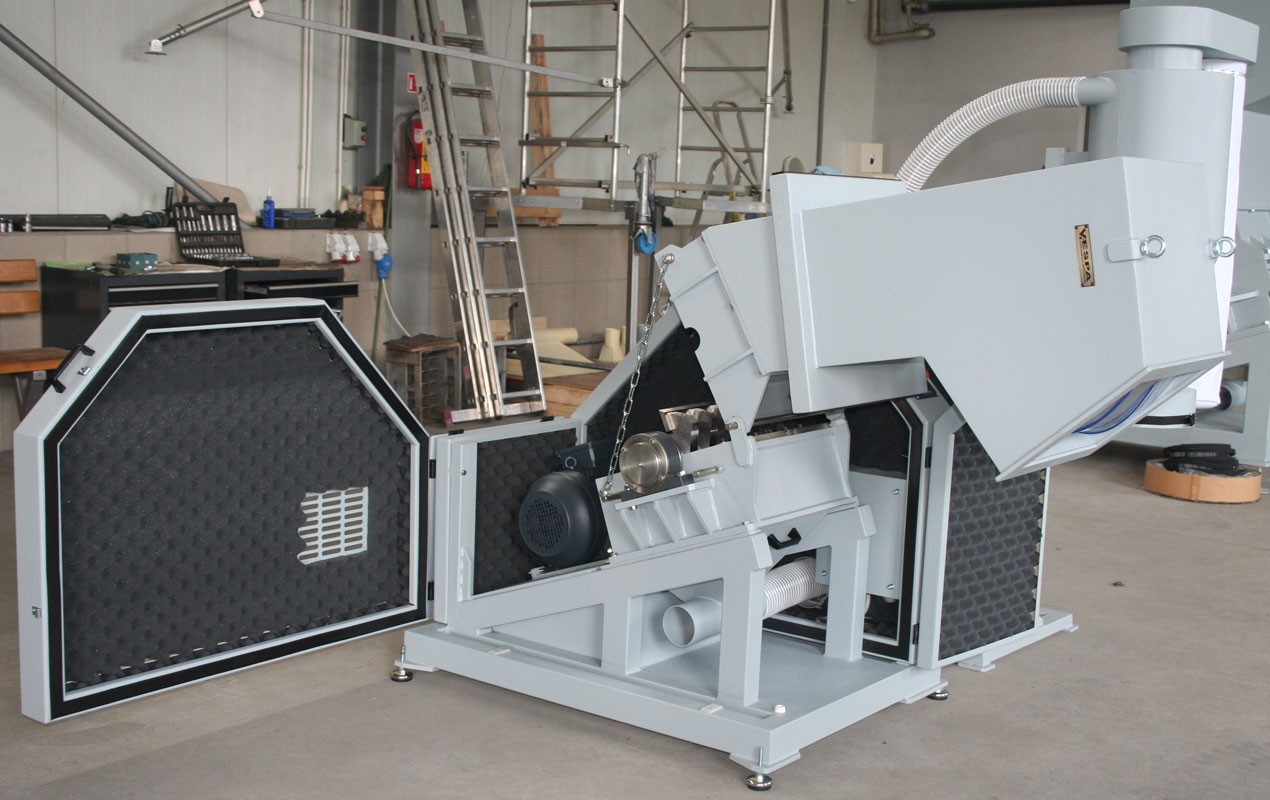

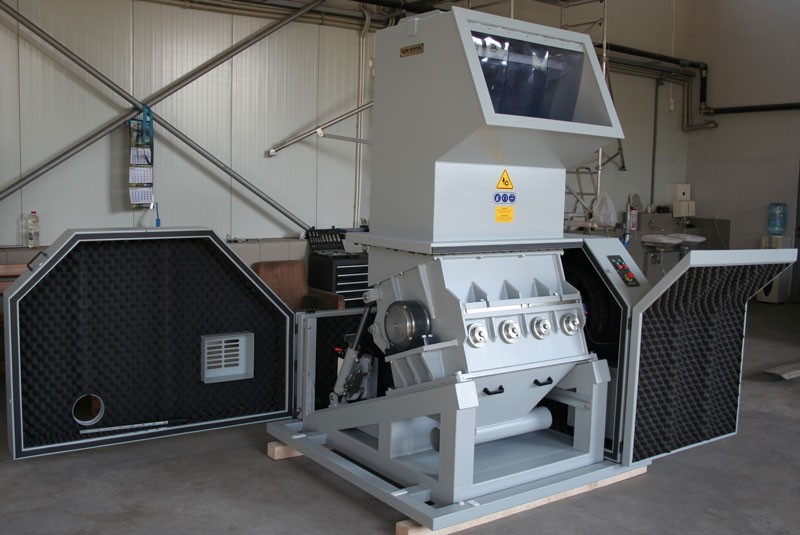

Soundproofed hopper designed for minimum noise level and easy feeding with several alternative feed options available |
|
|

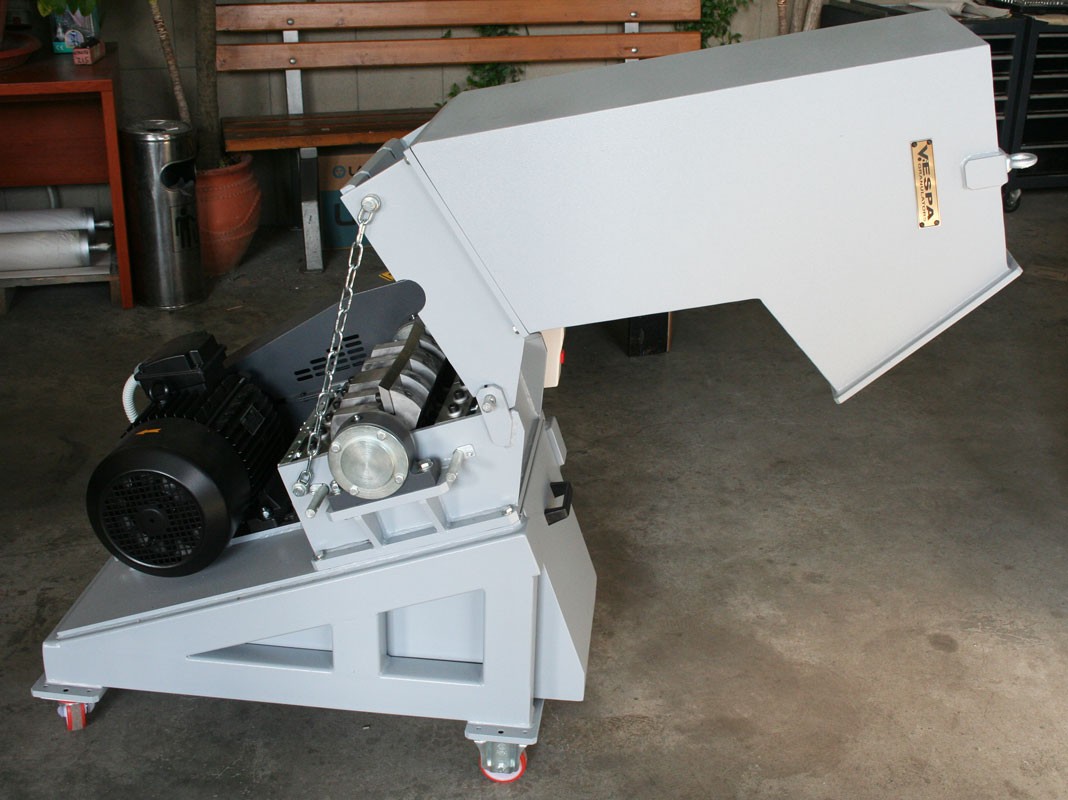

Horizontally or diagonally devided housing with robust steel weld design |
|
|

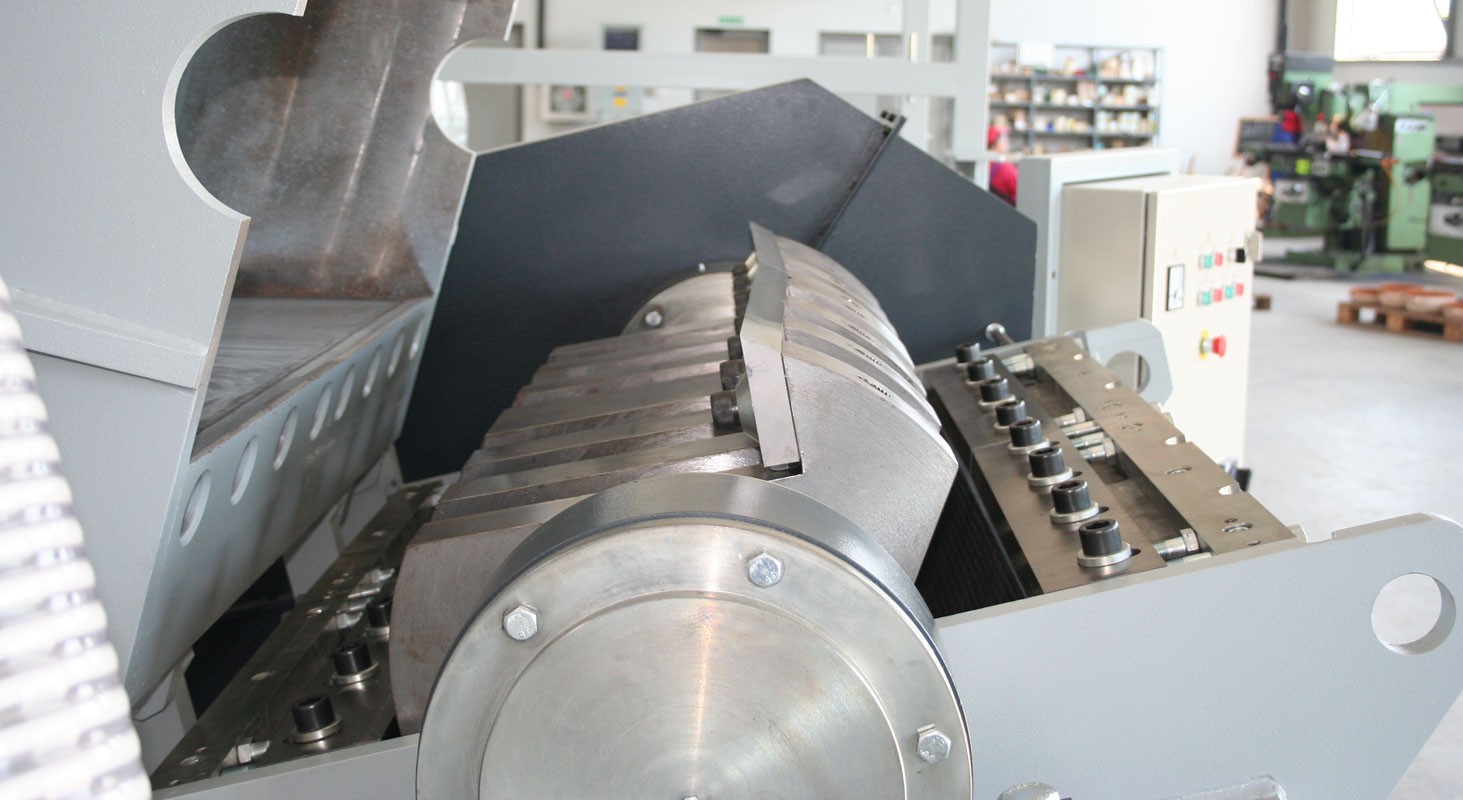

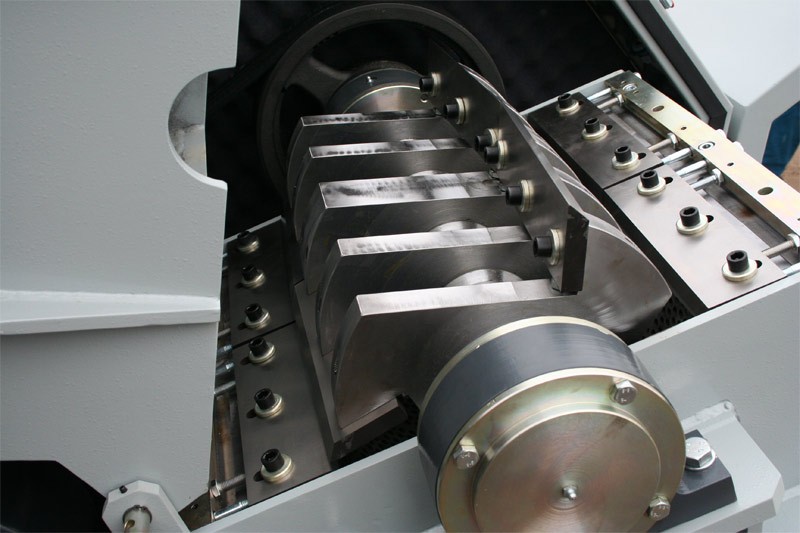

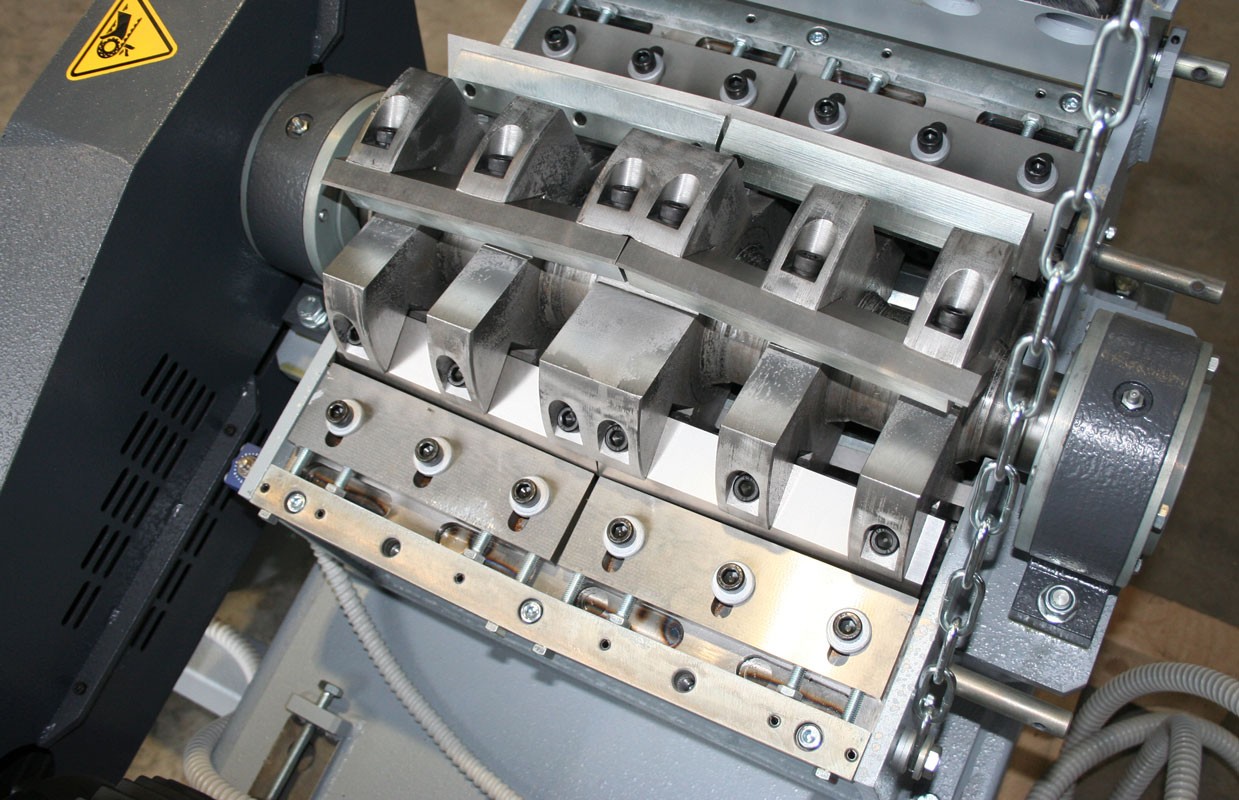

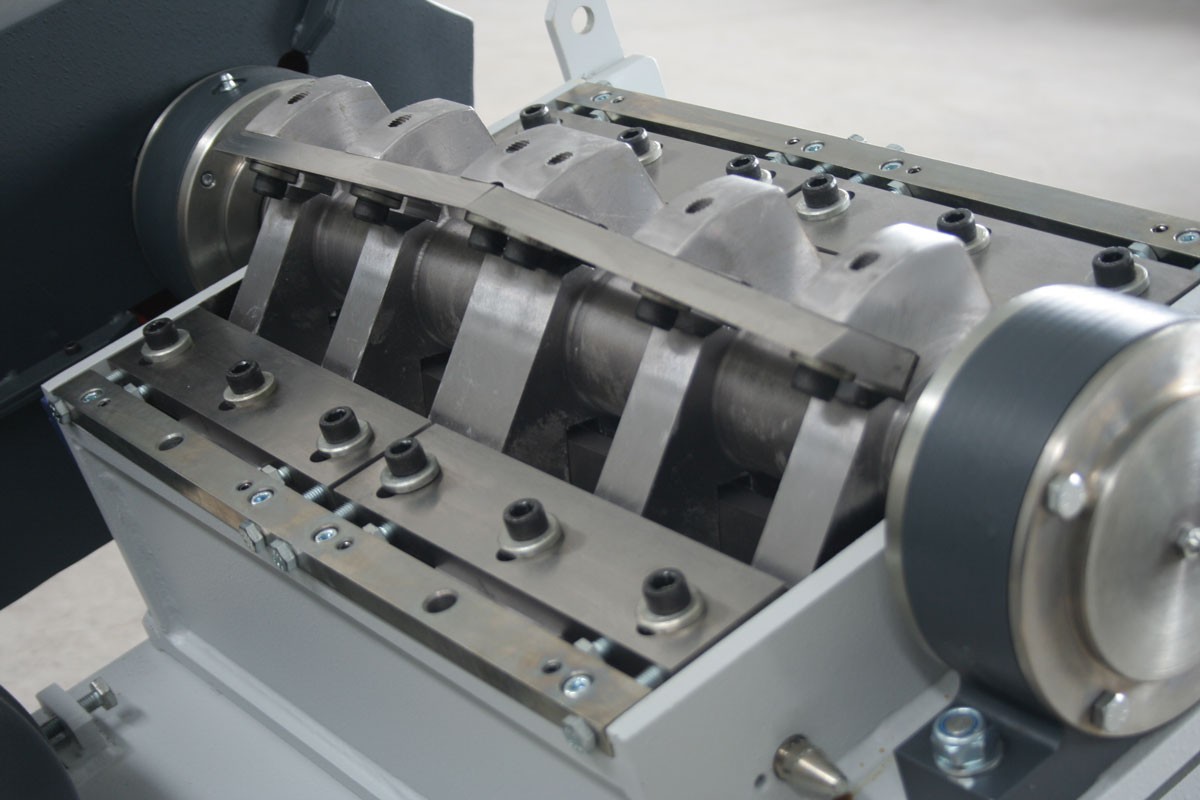

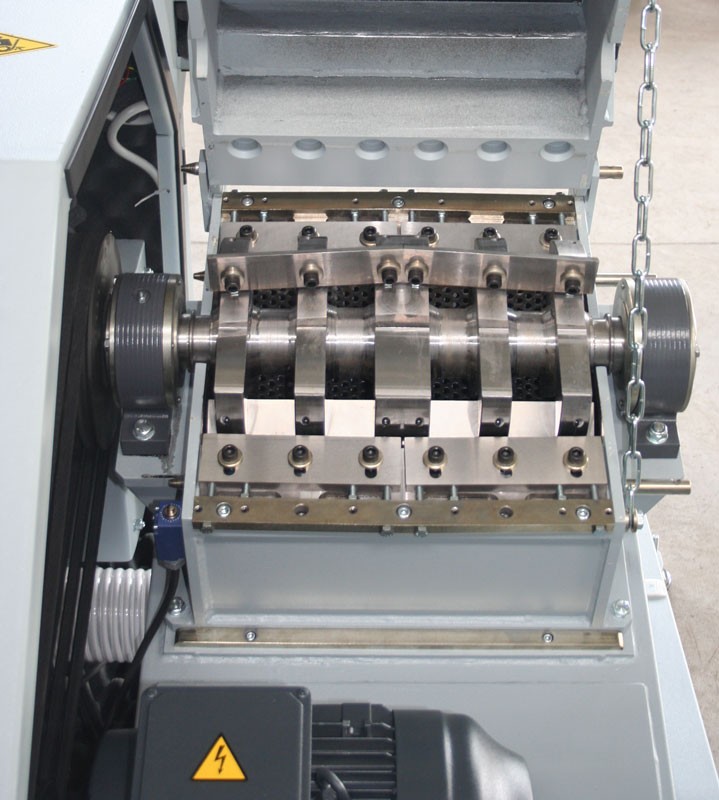

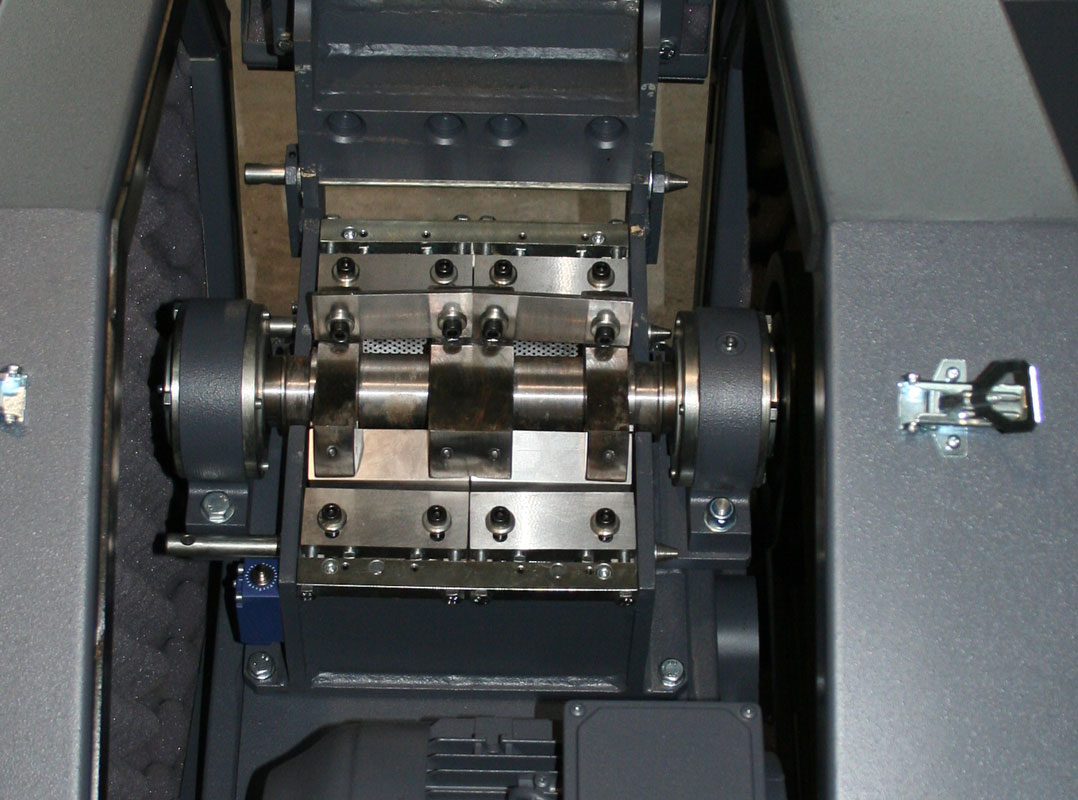

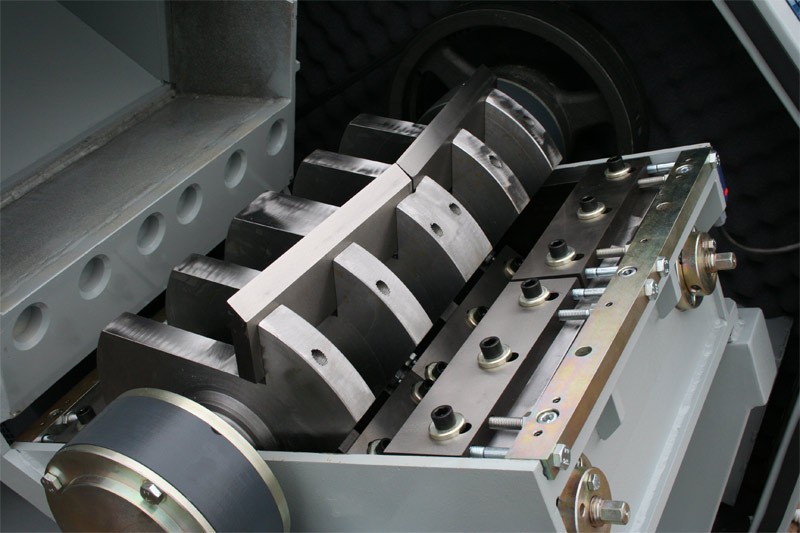

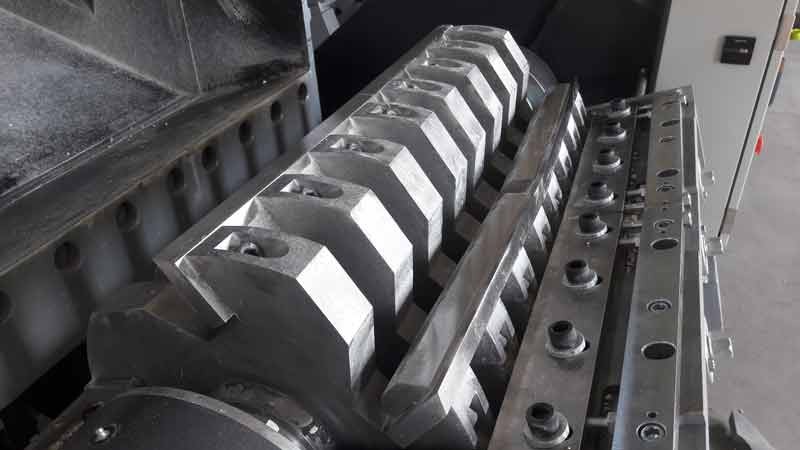

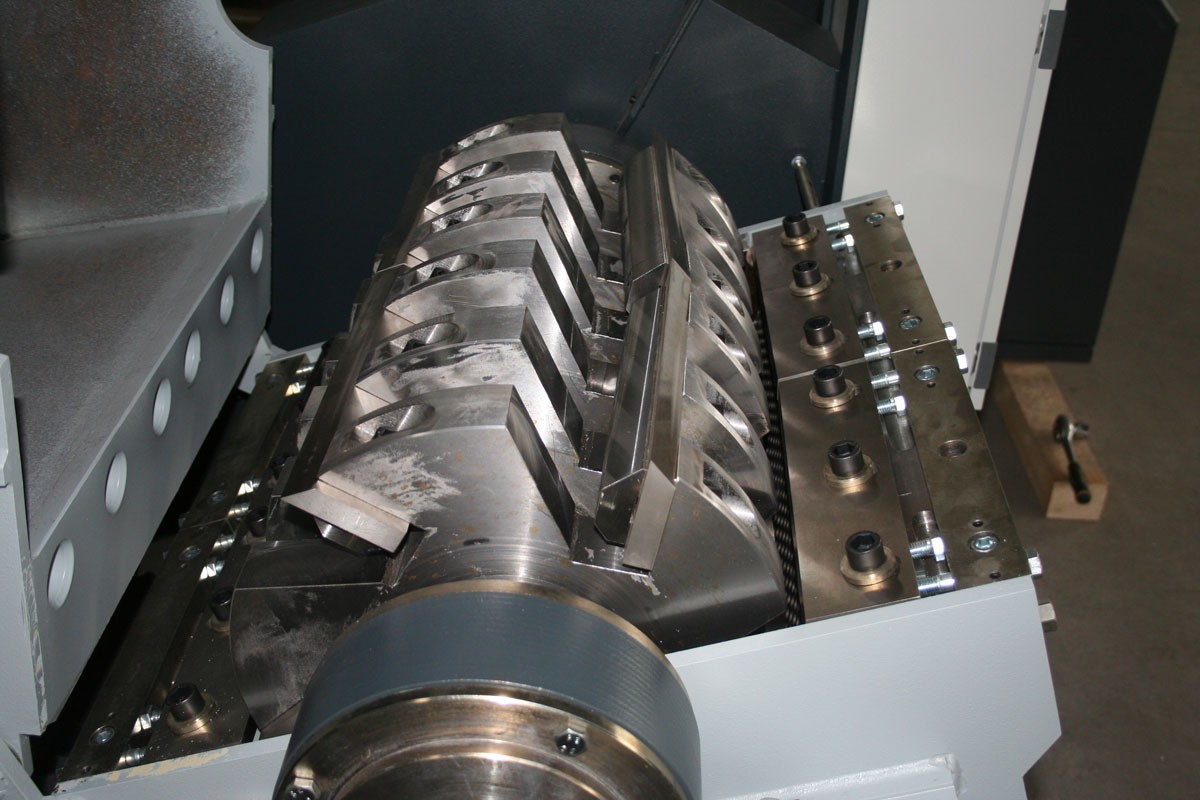

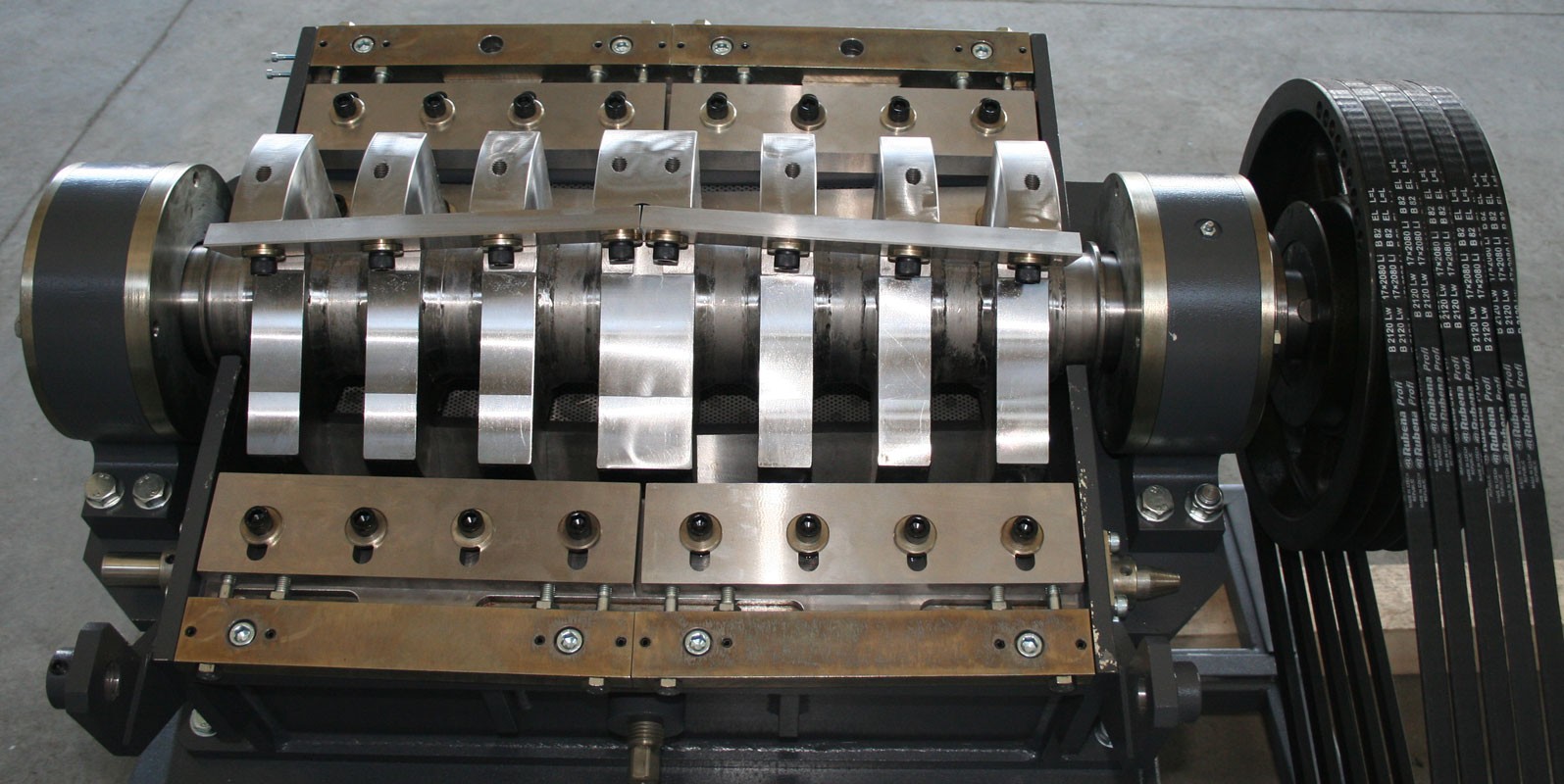

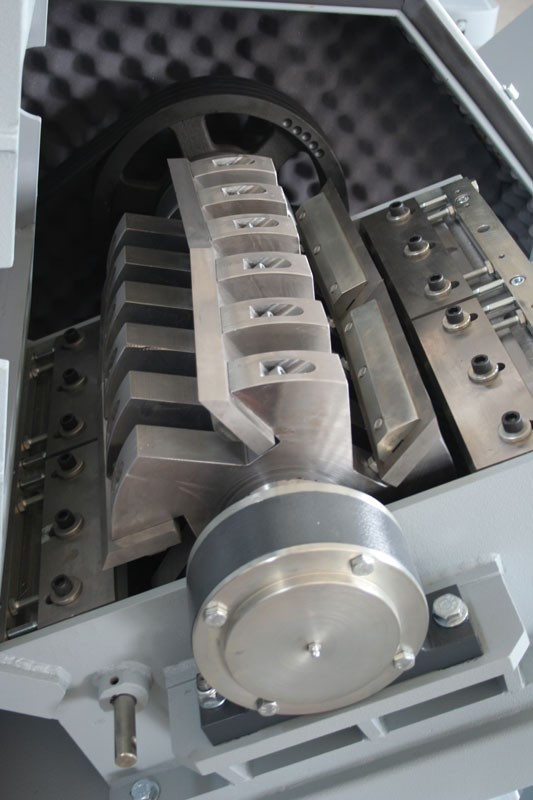

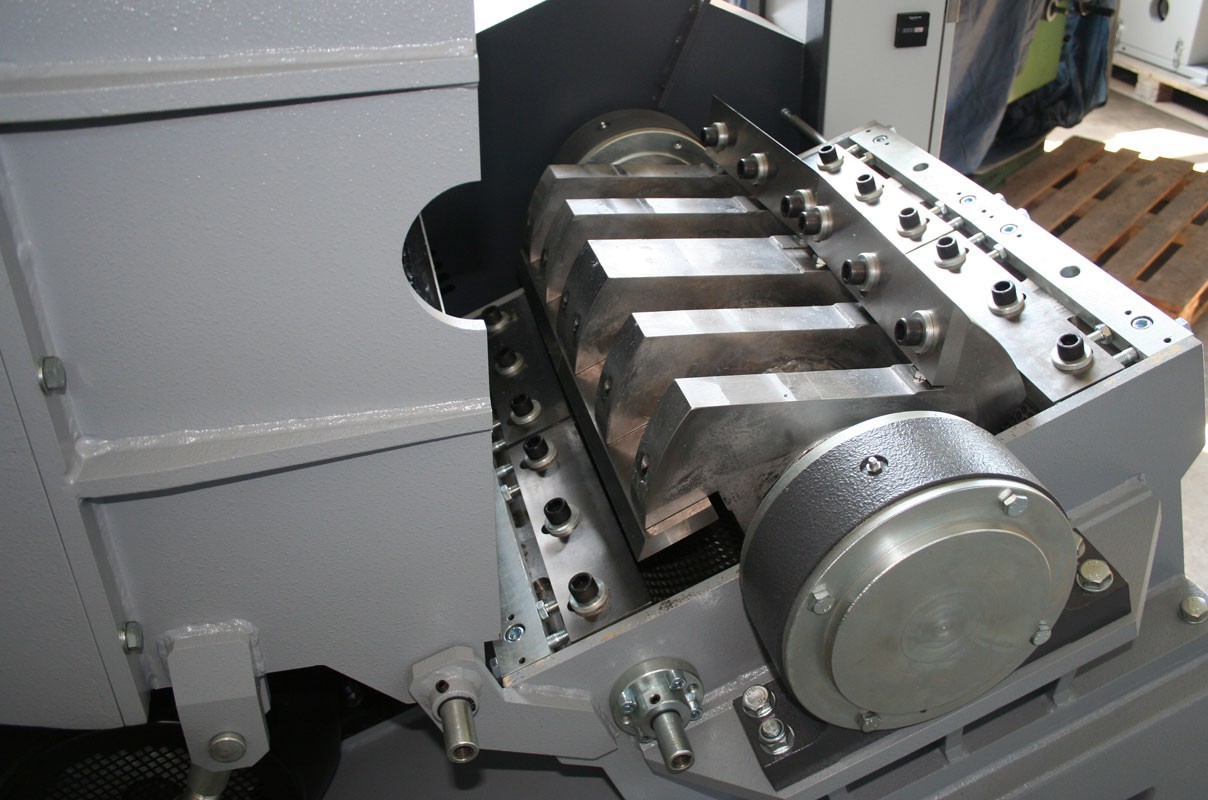

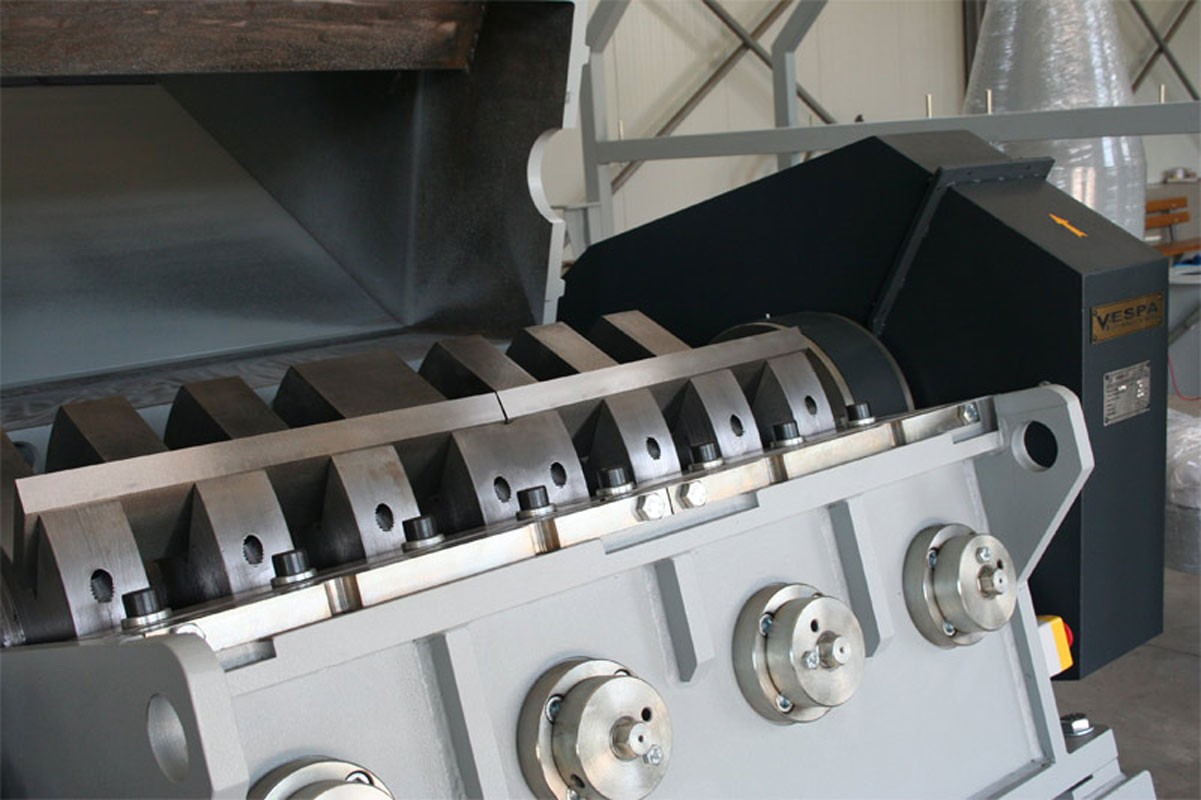

Cutting rotor turns in extremely robust self-aligning roller bearing that are arranged in bearing housing outside of the cutting chamber |
|
|

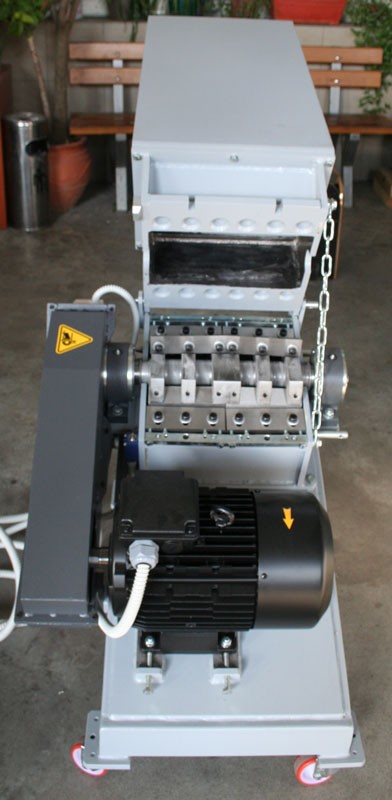

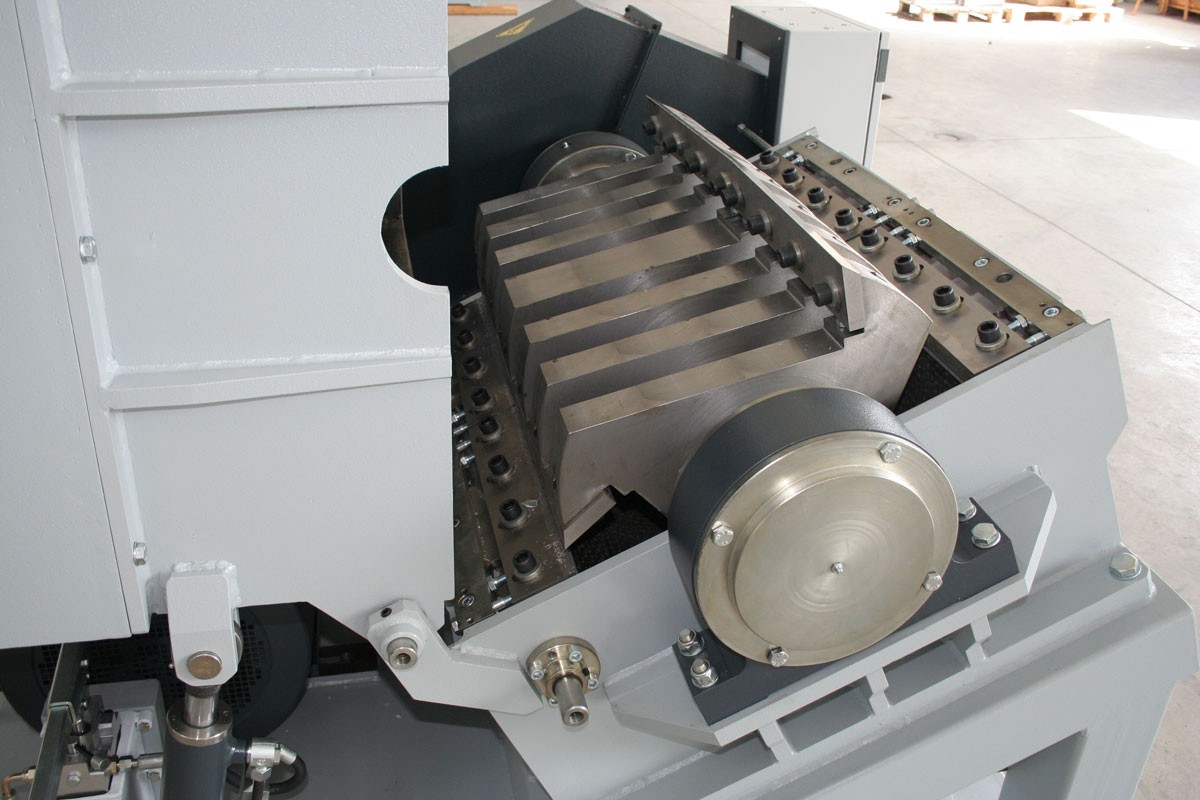

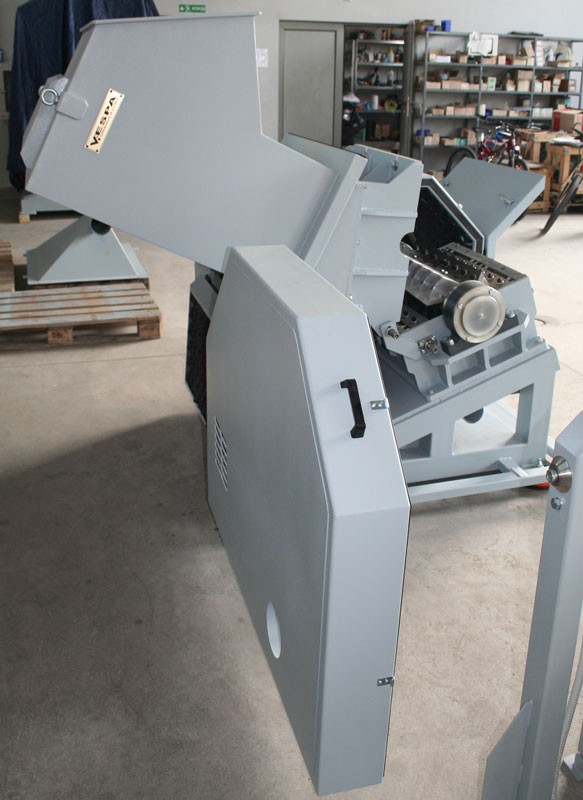

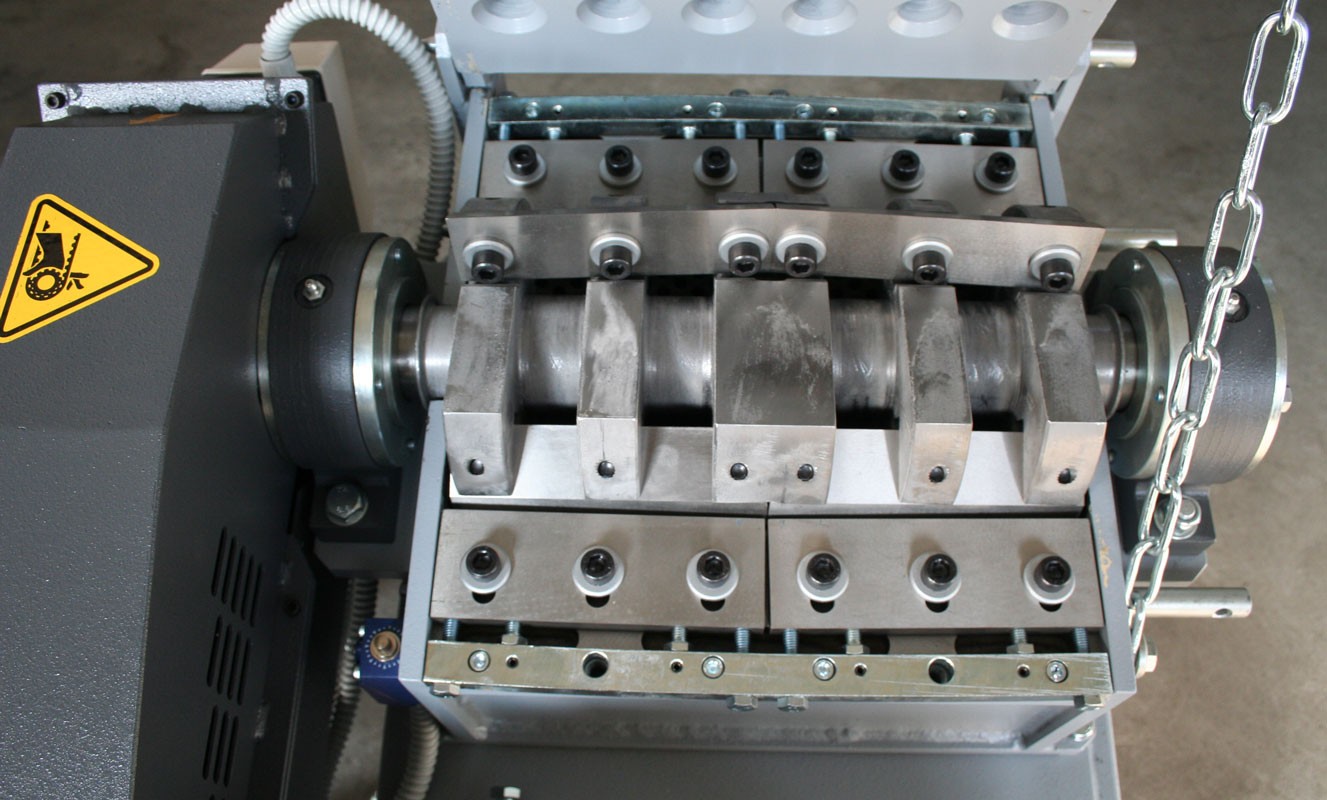

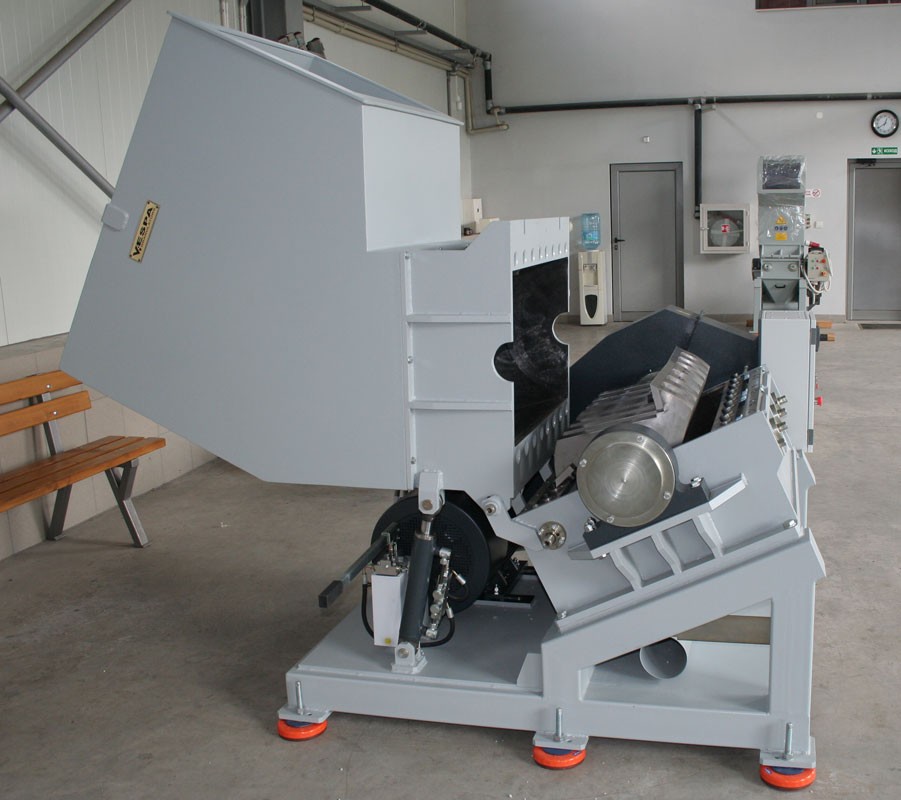

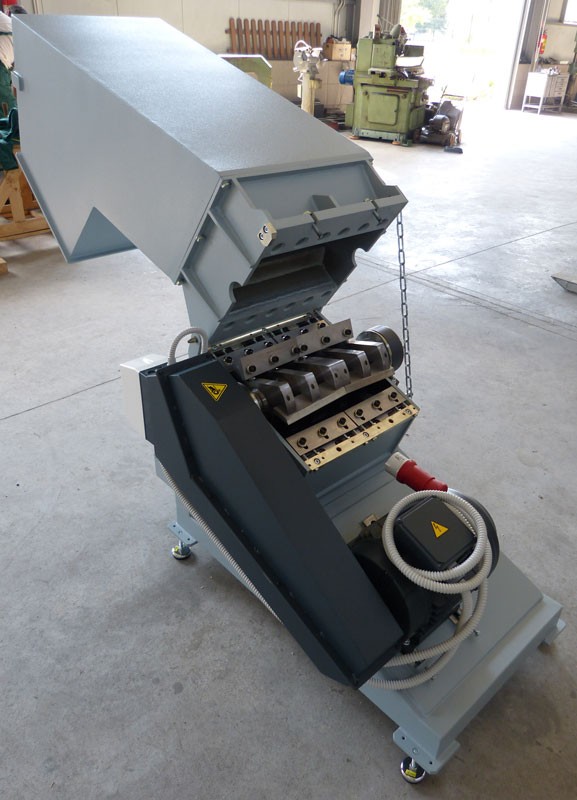

Easy access to the knives |
|
|
Knives made of trom high quality tool steel, with precision machning, heath treatment and surface finish |
|
|

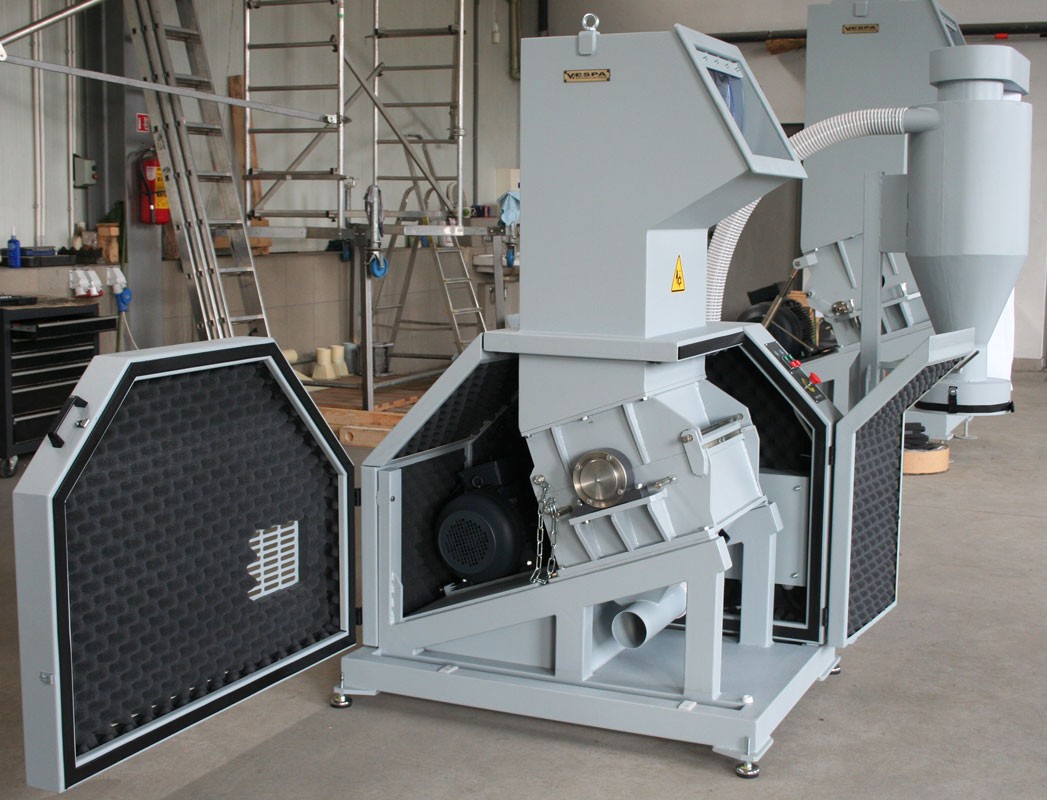

Good accessibility for cleaning and maintenance |
|
|

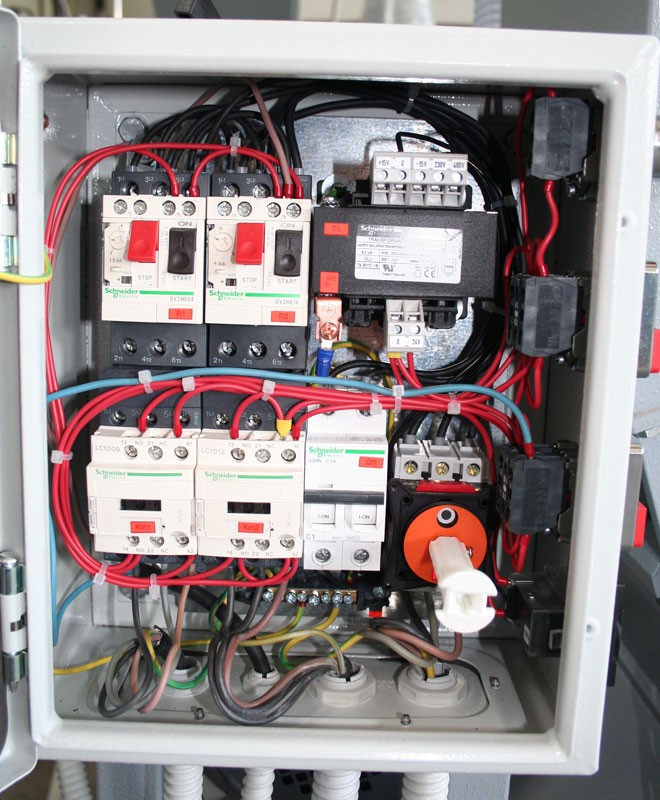

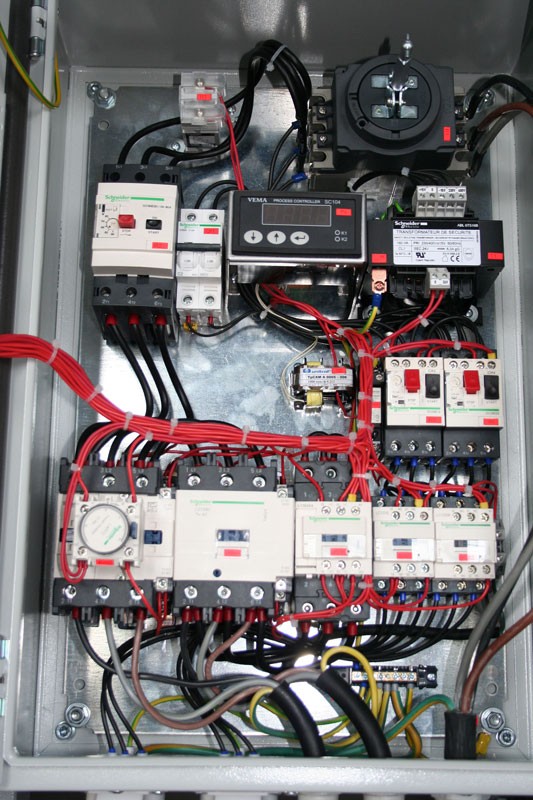

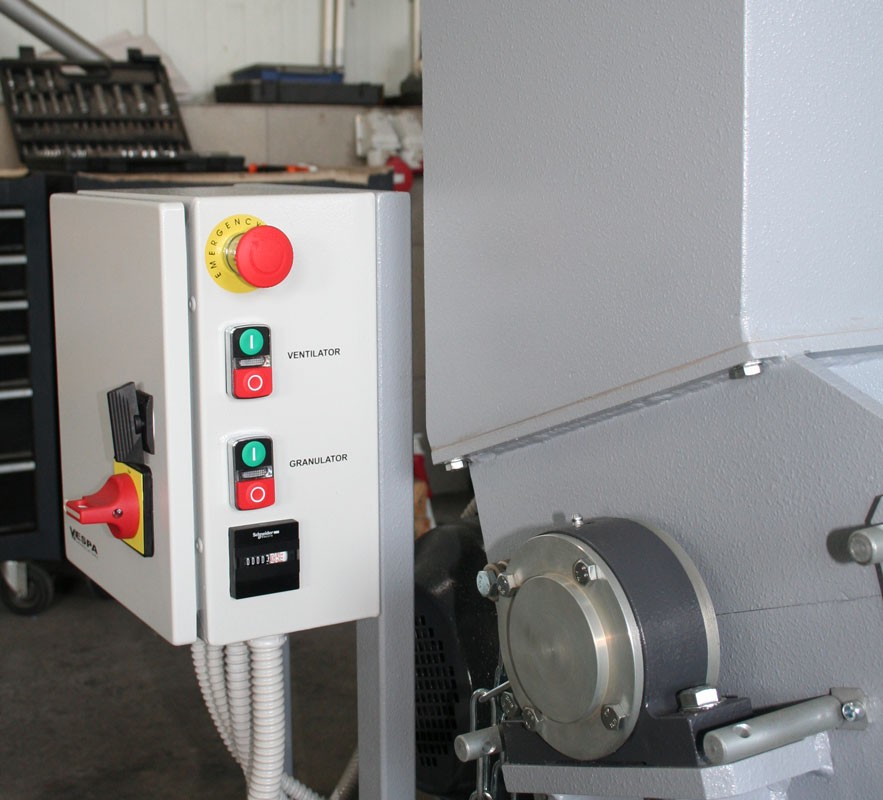

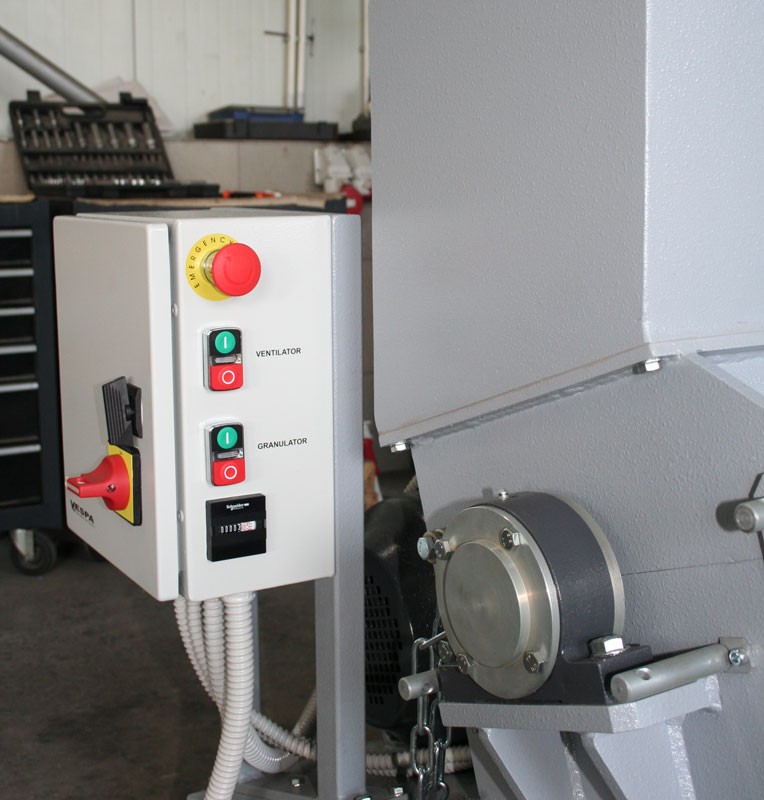

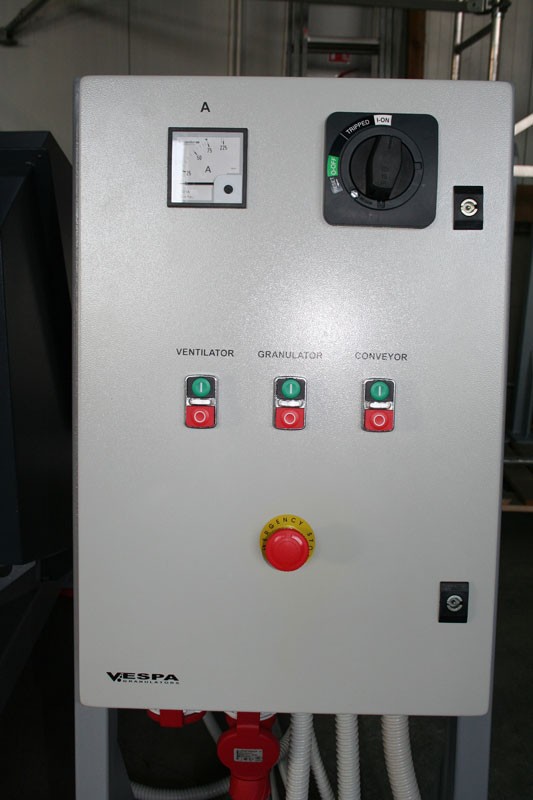

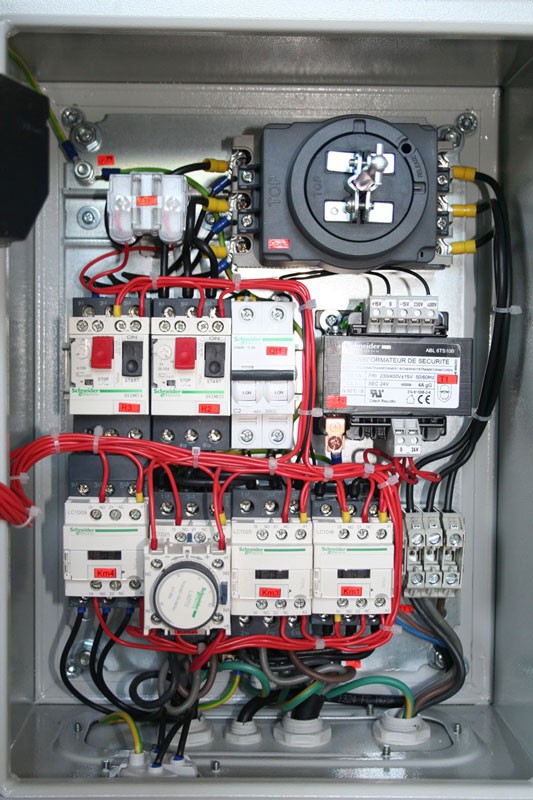

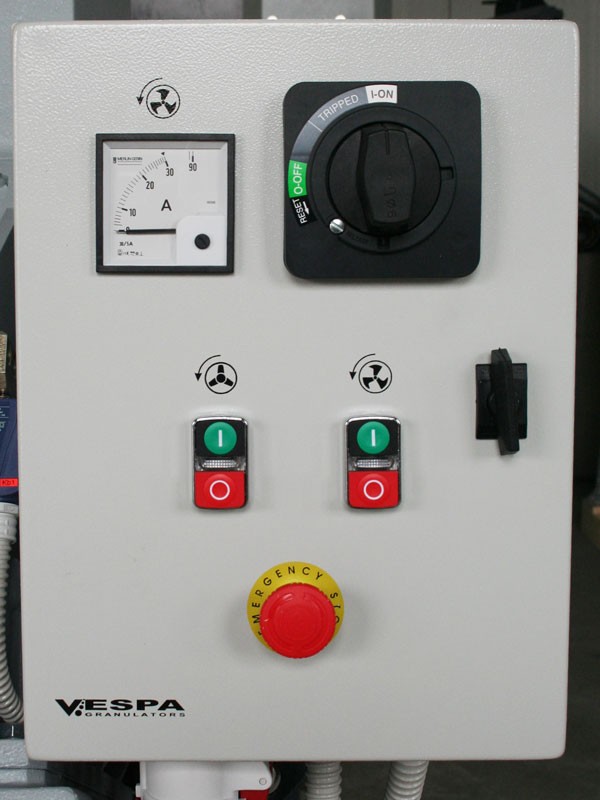

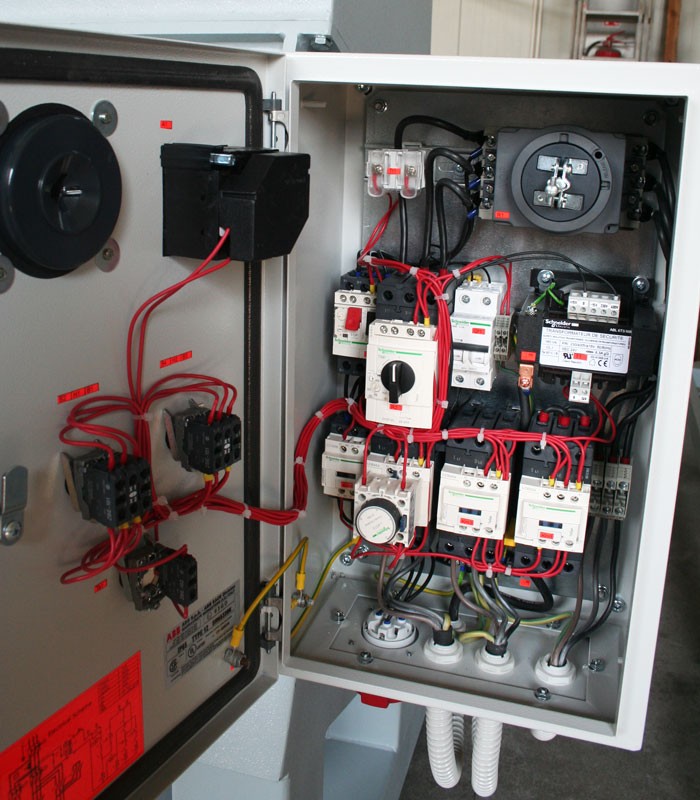

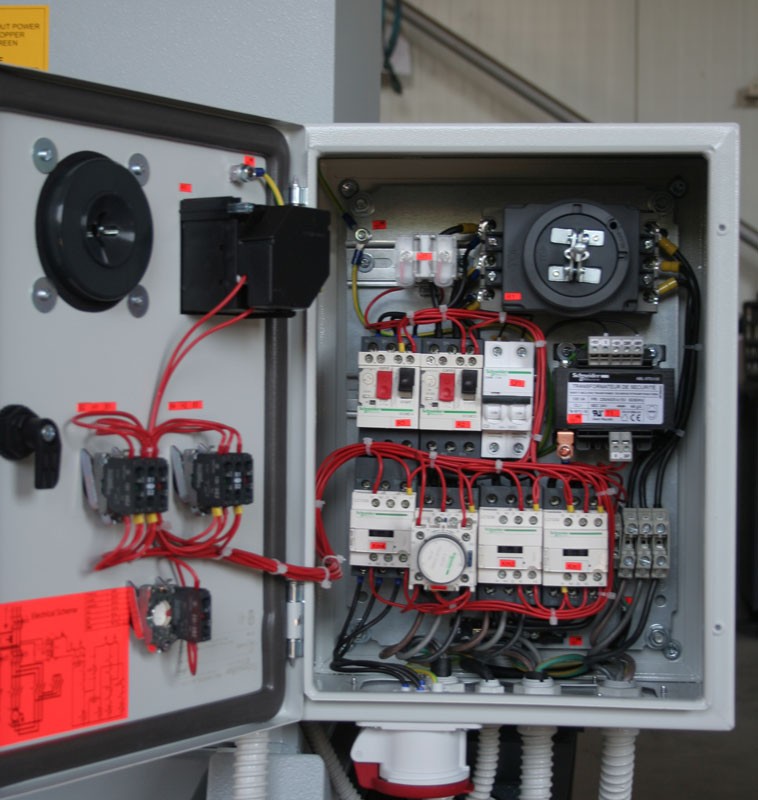

Electrical equipment completed with SCHNEIDER ELECTRIC elements and fitted with necessary safety devices |
DESCRIPTION

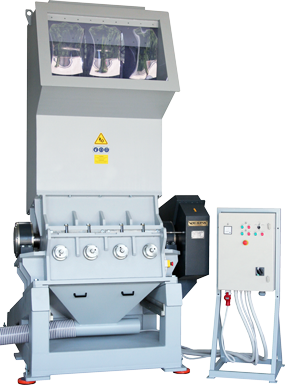

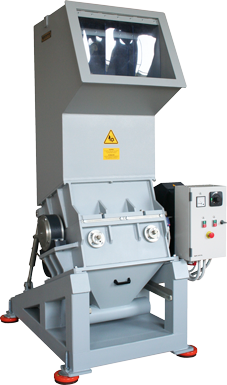

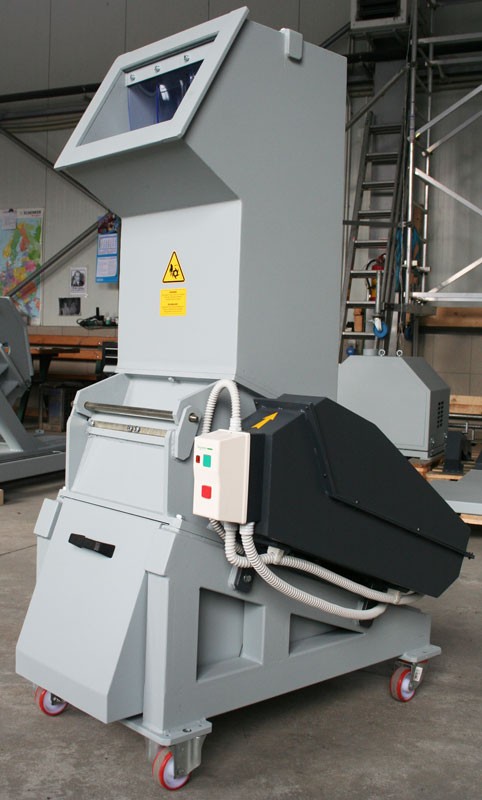

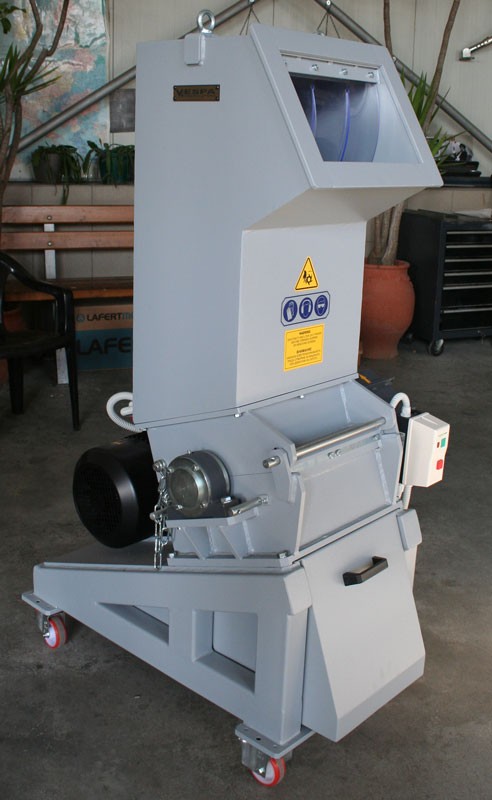

VESPA Granulators Small series are intended for beside-the-press operations involving the derect resysling of plastic waste and rejects primarily from injection and blow moulding processes, whereas the medium-size and heavy series plastic granulators are built for large volume central or beside-the-press size of sprues, moulded items, profiles, pipes, sheets and films. Soundproof insulation is available for the majority of the models.
SMALL SERIES

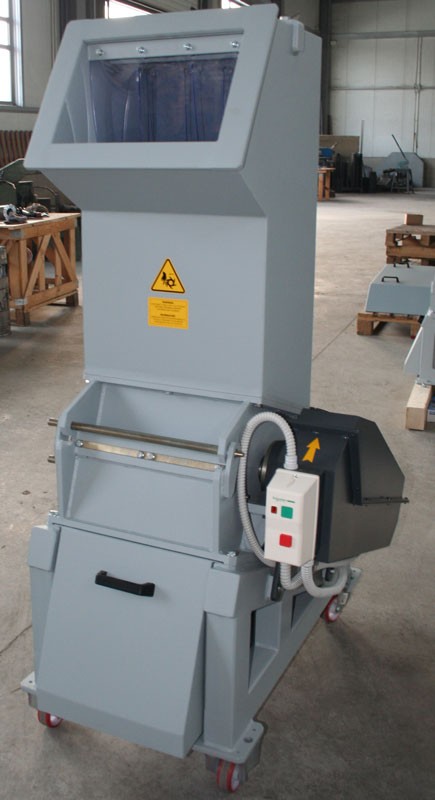

VESPA16/22VGA
Model VESPA16/22VGA
OUTPUT* UP TO
Kg/h
40-60
ROTOR DIAMETER
mm
160
ROTOR KNIVES
pcs. x mm
6x110
STATOR KNIVES
pcs. x mm
4x110
POWER
kW
4.0
WEIGHT
Kg
320

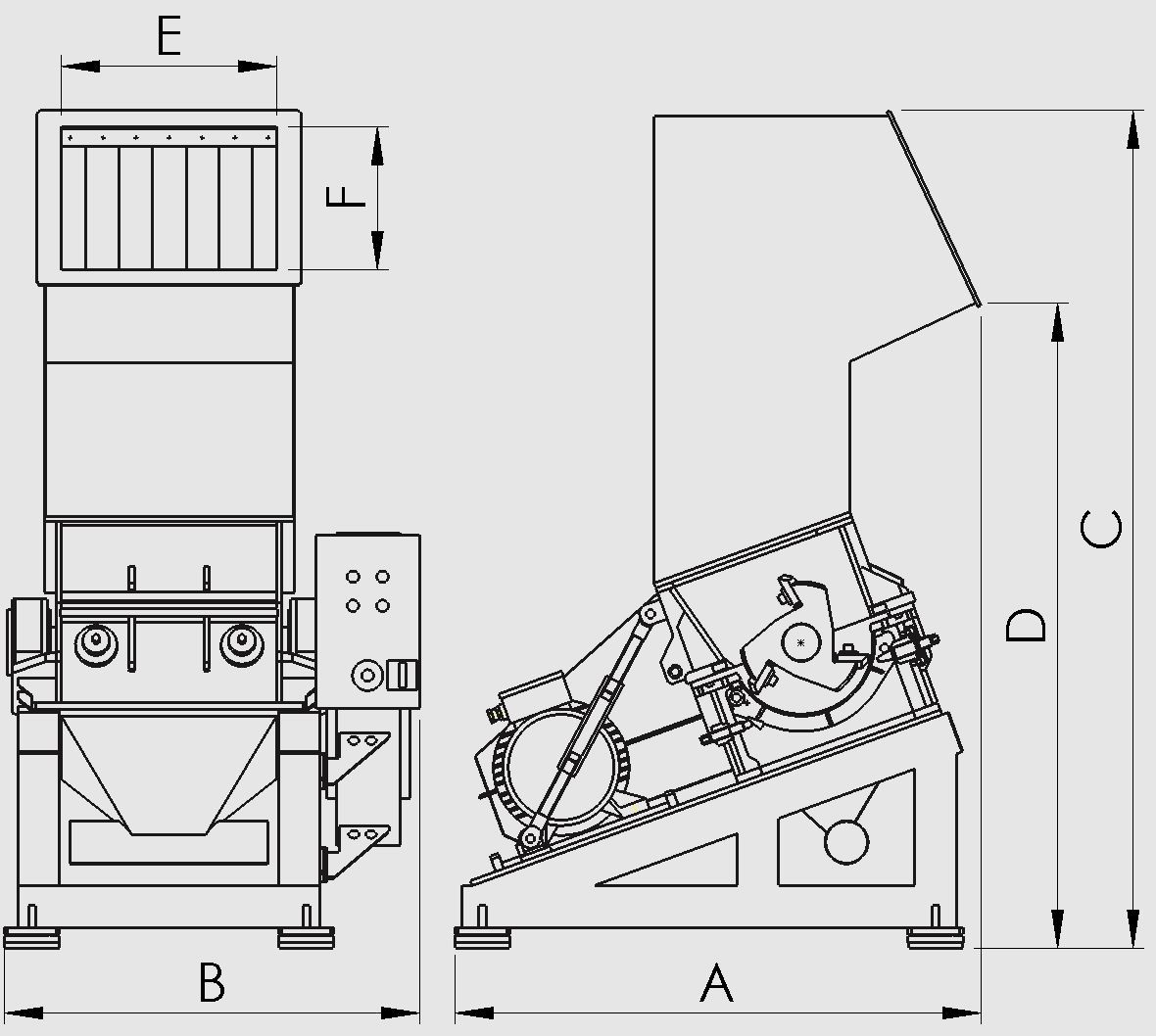

Sizes(mm)
A
800
B
520
C
1380
D
1180
E
225
F
220
*Output values are approximate only and are dependent upon your specific application. Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment.
| Model | VESPA16/22VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 40-60 | |
| ROTOR DIAMETER | mm | 160 | |
| ROTOR KNIVES | pcs. x mm | 6x110 | |
| STATOR KNIVES | pcs. x mm | 4x110 | |
| POWER | kW | 4.0 | |
| WEIGHT | Kg | 320 | |
| Sizes(mm) | |
|---|---|
| A | 800 |
| B | 520 |
| C | 1380 |
| D | 1180 |
| E | 225 |
| F | 220 |
*Output values are approximate only and are dependent upon your specific application. Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment.
VESPA18/32VGA
Model VESPA18/32VGA
OUTPUT* UP TO
Kg/h
60-80
ROTOR DIAMETER
мм
180
ROTOR KNIVES
pcs. x mm
6x160
STATOR KNIVES
pcs. x mm
4x160
POWER
kW
5.5
WEIGHT
Kg
400
Sizes(mm)
A
860
B
620
C
1480
D
1250
E
325
F
220
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA18/32VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 60-80 | |
| ROTOR DIAMETER | мм | 180 | |
| ROTOR KNIVES | pcs. x mm | 6x160 | |
| STATOR KNIVES | pcs. x mm | 4x160 | |
| POWER | kW | 5.5 | |
| WEIGHT | Kg | 400 | |
| Sizes(mm) | |
|---|---|
| A | 860 |
| B | 620 |
| C | 1480 |
| D | 1250 |
| E | 325 |
| F | 220 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
VESPA18/45VGA
Model VESPA18/45VGA
OUTPUT* UP TO
Kg/h
80-120
ROTOR DIAMETER
мм
180
ROTOR KNIVES
pcs. x mm
6x225
STATOR KNIVES
pcs. x mm
4x225
POWER
kW
7.5
WEIGHT
Kg
540

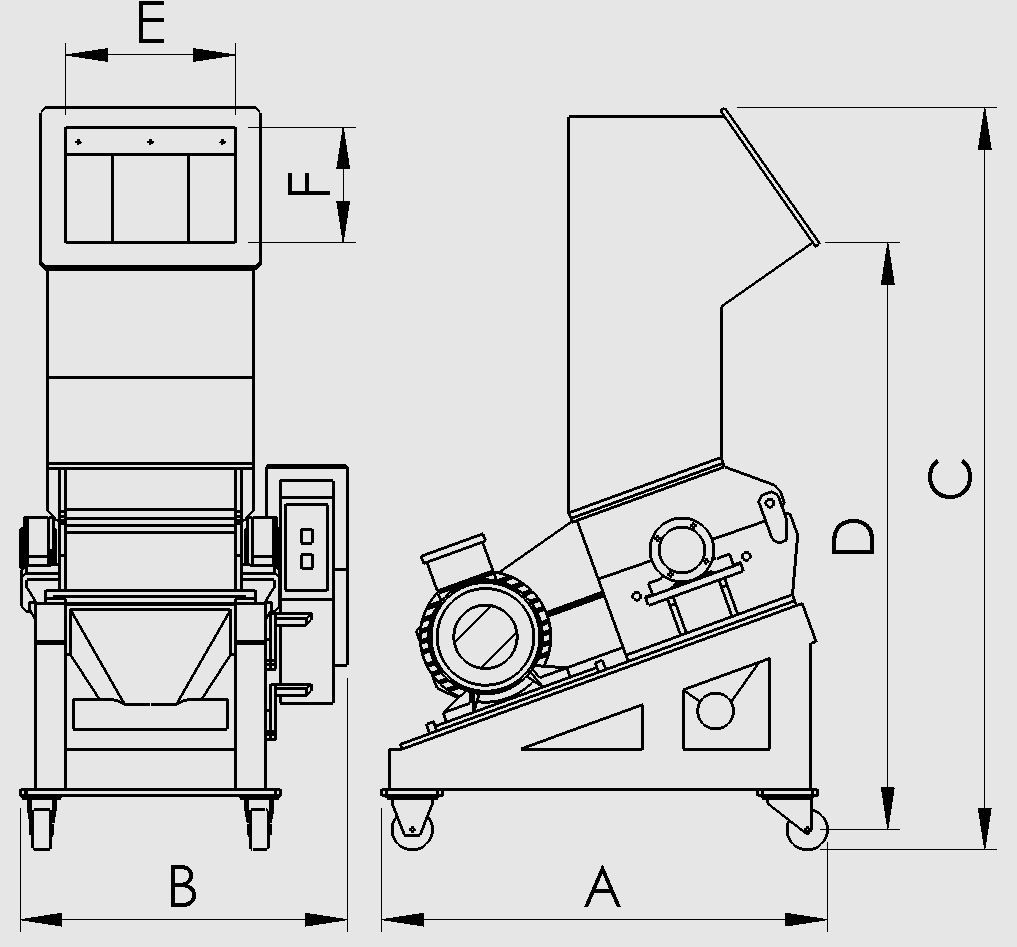

Sizes(mm)
A
860
B
670
C
1480
D
1250
E
460
F
220
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA18/45VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 80-120 | |
| ROTOR DIAMETER | мм | 180 | |
| ROTOR KNIVES | pcs. x mm | 6x225 | |
| STATOR KNIVES | pcs. x mm | 4x225 | |
| POWER | kW | 7.5 | |
| WEIGHT | Kg | 540 | |
| Sizes(mm) | |
|---|---|
| A | 860 |
| B | 670 |
| C | 1480 |
| D | 1250 |
| E | 460 |
| F | 220 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment

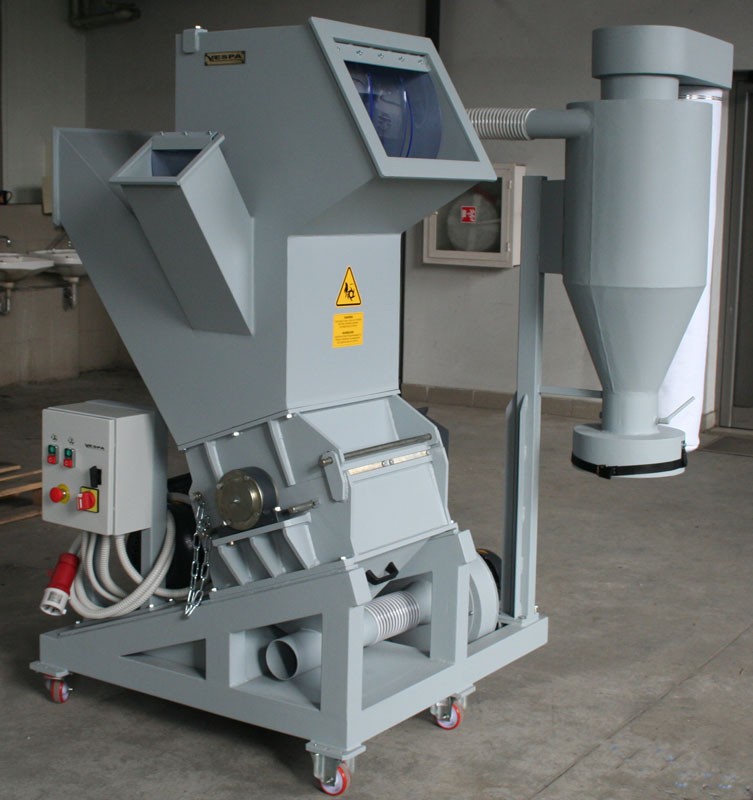

VESPA25/32VGA
Model VESPA25/32VGA
OUTPUT* UP TO
Kg/h
80-120
ROTOR DIAMETER
mm
250
ROTOR KNIVES
pcs. x mm
6x160
STATOR KNIVES
pcs. x mm
4x160
POWER
kW
7.5
WEIGHT
Kg
500
Sizes(mm)
A
1115
B
690
C
1800
D
1490
E
330
F
310
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA25/32VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 80-120 | |
| ROTOR DIAMETER | mm | 250 | |
| ROTOR KNIVES | pcs. x mm | 6x160 | |
| STATOR KNIVES | pcs. x mm | 4x160 | |
| POWER | kW | 7.5 | |
| WEIGHT | Kg | 500 | |
| Sizes(mm) | |
|---|---|
| A | 1115 |
| B | 690 |
| C | 1800 |
| D | 1490 |
| E | 330 |
| F | 310 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment

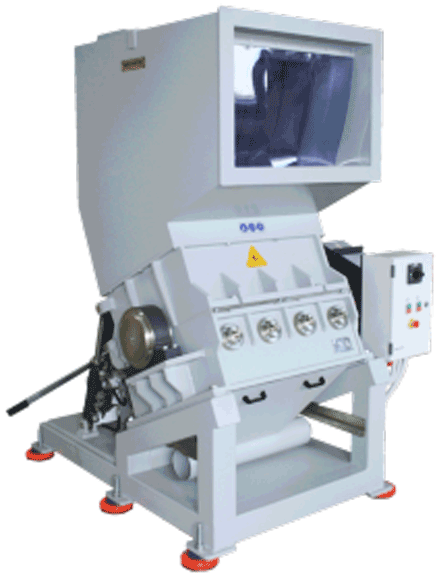

VESPA25/40VGA
Model VESPA25/40VGA
OUTPUT* UP TO
Kg/h
100-140
ROTOR DIAMETER
mm
250
ROTOR KNIVES
pcs. x mm
6x200
STATOR KNIVES
pcs. x mm
4x200
POWER
kW
7.5
WEIGHT
Kg
560
Sizes(mm)
A
1115
B
770
C
1800
D
1490
E
410
F
310
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA25/40VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 100-140 | |
| ROTOR DIAMETER | mm | 250 | |
| ROTOR KNIVES | pcs. x mm | 6x200 | |
| STATOR KNIVES | pcs. x mm | 4x200 | |
| POWER | kW | 7.5 | |
| WEIGHT | Kg | 560 | |
| Sizes(mm) | |
|---|---|
| A | 1115 |
| B | 770 |
| C | 1800 |
| D | 1490 |
| E | 410 |
| F | 310 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
MEDIUM SERIES
VESPA35/40VGA
Model VESPA35/40VGA
OUTPUT* UP TO
Kg/h
120-200
ROTOR DIAMETER
mm
350
ROTOR KNIVES
pcs. x mm
6x200
STATOR KNIVES
pcs. x mm
4x200
POWER
kW
11.0
WEIGHT
Kg
960
Sizes(mm)
A
1180
B
950
C
1980
D
1670
E
420
F
380
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA35/40VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 120-200 | |
| ROTOR DIAMETER | mm | 350 | |
| ROTOR KNIVES | pcs. x mm | 6x200 | |
| STATOR KNIVES | pcs. x mm | 4x200 | |
| POWER | kW | 11.0 | |
| WEIGHT | Kg | 960 | |
| Sizes(mm) | |
|---|---|
| A | 1180 |
| B | 950 |
| C | 1980 |
| D | 1670 |
| E | 420 |
| F | 380 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment

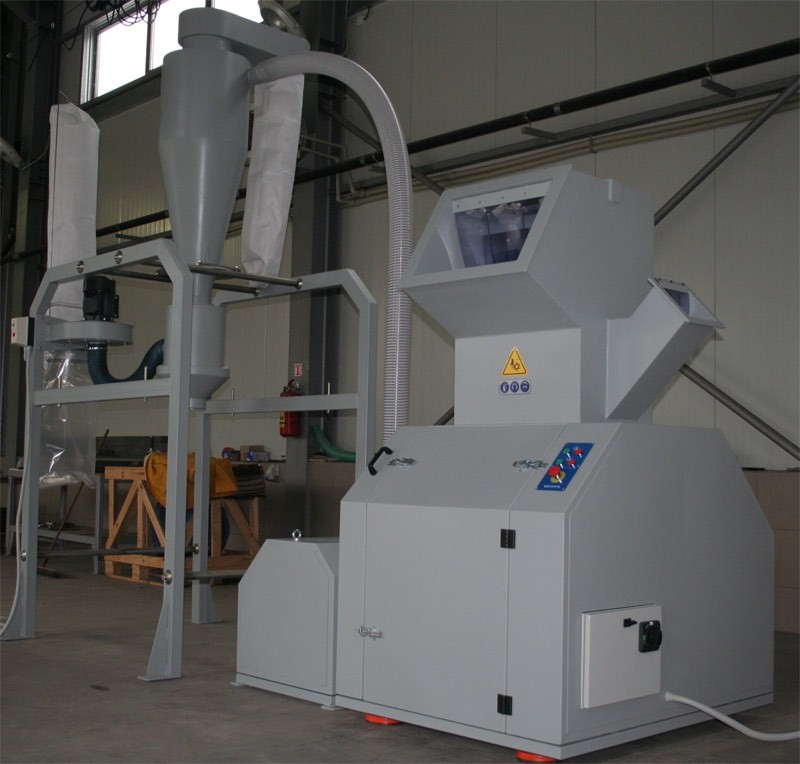

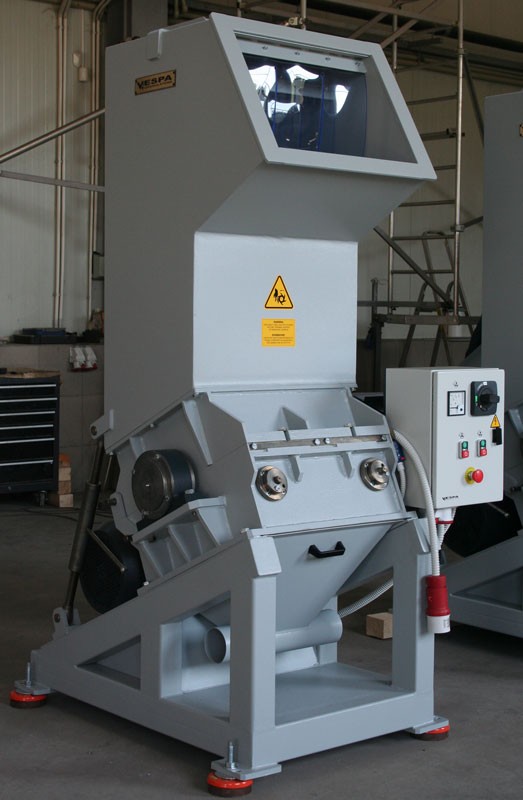

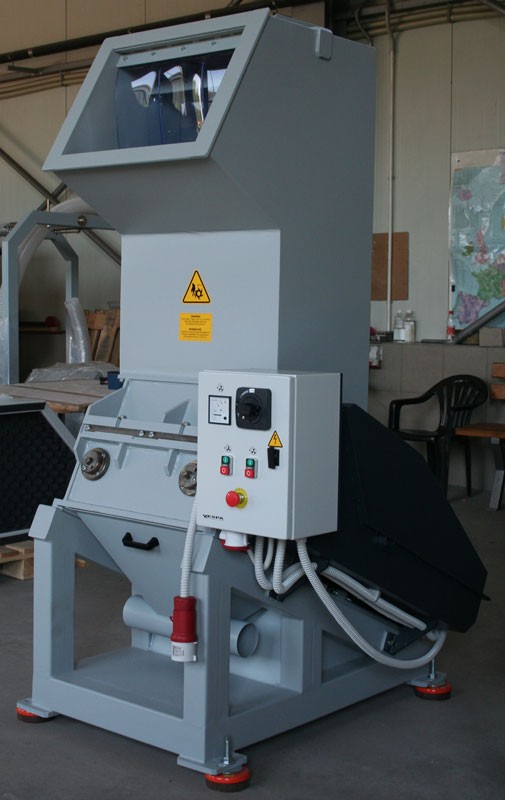

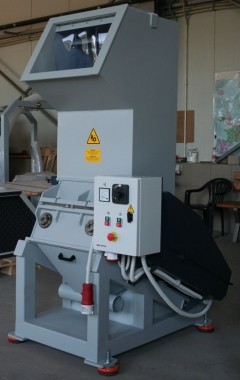

VESPA35/50VGA
Model VESPA35/50VGA
OUTPUT* UP TO
Kg/h
150-250
ROTOR DIAMETER
mm
350
ROTOR KNIVES
pcs. x mm
6x250
STATOR KNIVES
pcs. x mm
4x250
POWER
kW
15.0
WEIGHT
Kg
1150
Sizes(mm)
A
1180
B
1050
C
1980
D
1670
E
520
F
380
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA35/50VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 150-250 | |
| ROTOR DIAMETER | mm | 350 | |
| ROTOR KNIVES | pcs. x mm | 6x250 | |
| STATOR KNIVES | pcs. x mm | 4x250 | |
| POWER | kW | 15.0 | |
| WEIGHT | Kg | 1150 | |
| Sizes(mm) | |
|---|---|
| A | 1180 |
| B | 1050 |
| C | 1980 |
| D | 1670 |
| E | 520 |
| F | 380 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
VESPA30/60VGA
Model VESPA30/60VGA
OUTPUT* UP TO
Kg/h
200-300
ROTOR DIAMETER
mm
300
ROTOR KNIVES
pcs. x mm
6x300
STATOR KNIVES
pcs. x mm
4x300
POWER
kW
18.5
WEIGHT
Kg
1250
Sizes(mm)
A
1250
B
1230
C
2050
D
1650
E
620
F
400
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA30/60VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 200-300 | |
| ROTOR DIAMETER | mm | 300 | |
| ROTOR KNIVES | pcs. x mm | 6x300 | |
| STATOR KNIVES | pcs. x mm | 4x300 | |
| POWER | kW | 18.5 | |
| WEIGHT | Kg | 1250 | |
| Sizes(mm) | |
|---|---|
| A | 1250 |
| B | 1230 |
| C | 2050 |
| D | 1650 |
| E | 620 |
| F | 400 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
VESPA40/60VGA
Model VESPA40/60VGA
OUTPUT* UP TO
Kg/h
250-400
ROTOR DIAMETER
mm
400
ROTOR KNIVES
pcs. x mm
6x300
STATOR KNIVES
pcs. x mm
4x300
POWER
kW
30.0
WEIGHT
Kg
1760
Sizes(mm)
A
1520
B
1230
C
2420
D
1910
E
620
F
500
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA40/60VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 250-400 | |
| ROTOR DIAMETER | mm | 400 | |
| ROTOR KNIVES | pcs. x mm | 6x300 | |
| STATOR KNIVES | pcs. x mm | 4x300 | |
| POWER | kW | 30.0 | |
| WEIGHT | Kg | 1760 | |
| Sizes(mm) | |
|---|---|
| A | 1520 |
| B | 1230 |
| C | 2420 |
| D | 1910 |
| E | 620 |
| F | 500 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment

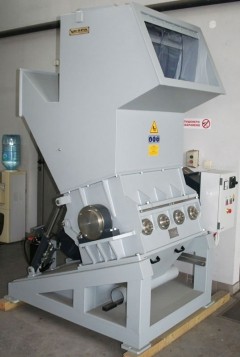

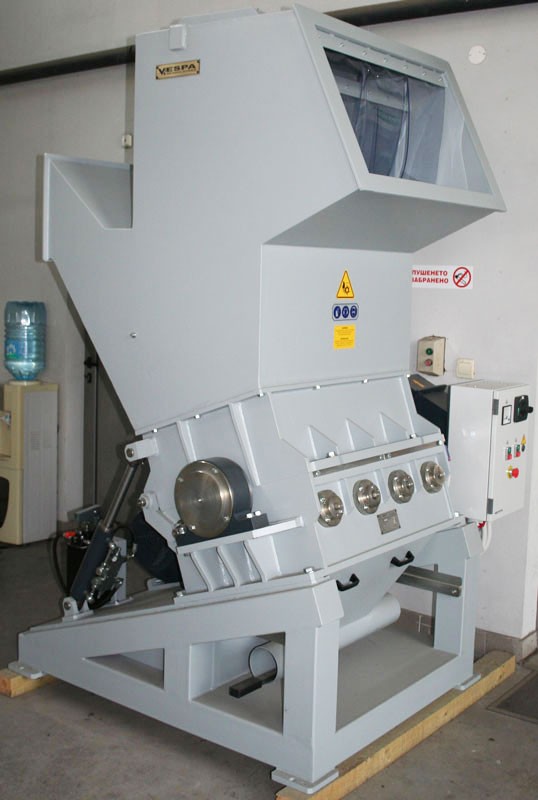

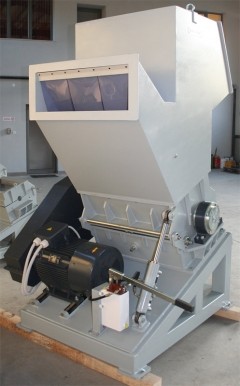

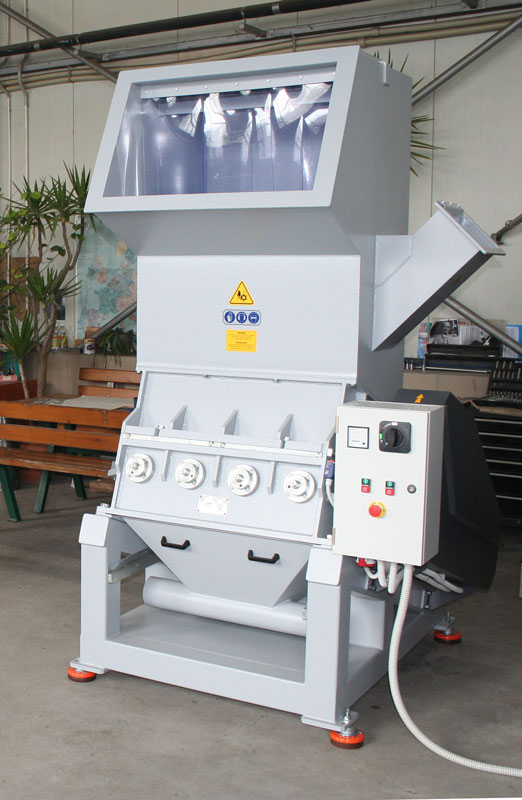

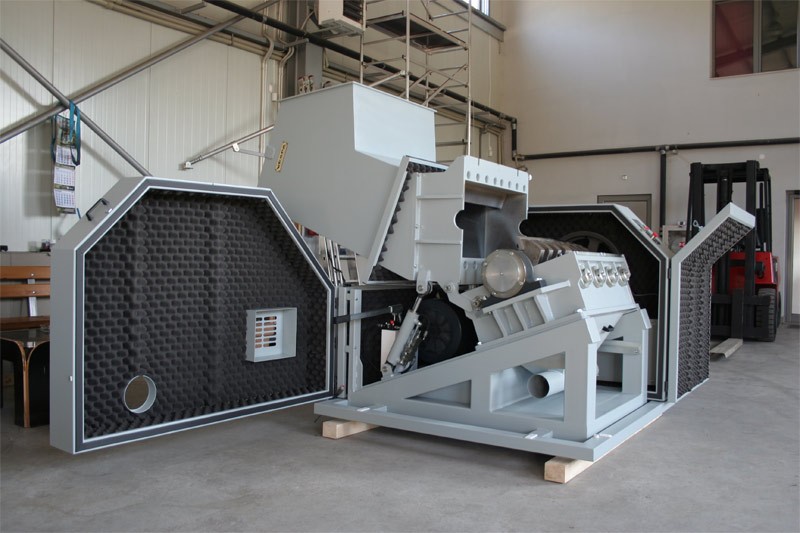

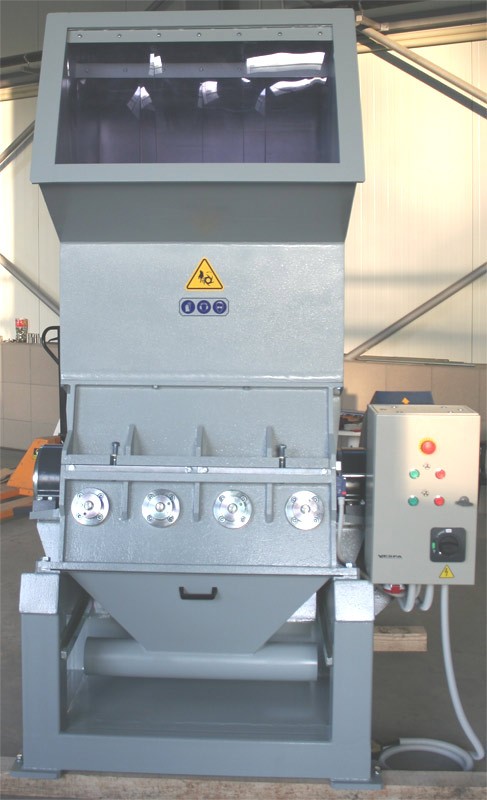

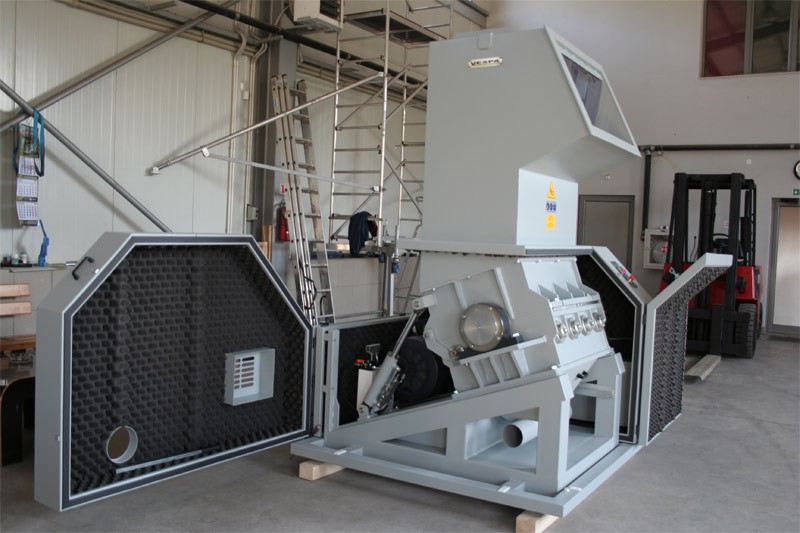

VESPA40/80VGA
Model VESPA40/80VGA
OUTPUT* UP TO
Kg/h
350-600
ROTOR DIAMETER
mm
400
ROTOR KNIVES
pcs. x mm
6x400
STATOR KNIVES
pcs. x mm
4x400
POWER
kW
30.0
WEIGHT
Kg
1960
Sizes(mm)
A
1520
B
1430
C
2420
D
1910
E
820
F
500
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA40/80VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 350-600 | |
| ROTOR DIAMETER | mm | 400 | |
| ROTOR KNIVES | pcs. x mm | 6x400 | |
| STATOR KNIVES | pcs. x mm | 4x400 | |
| POWER | kW | 30.0 | |
| WEIGHT | Kg | 1960 | |
| Sizes(mm) | |
|---|---|
| A | 1520 |
| B | 1430 |
| C | 2420 |
| D | 1910 |
| E | 820 |
| F | 500 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
HEAVY SERIES

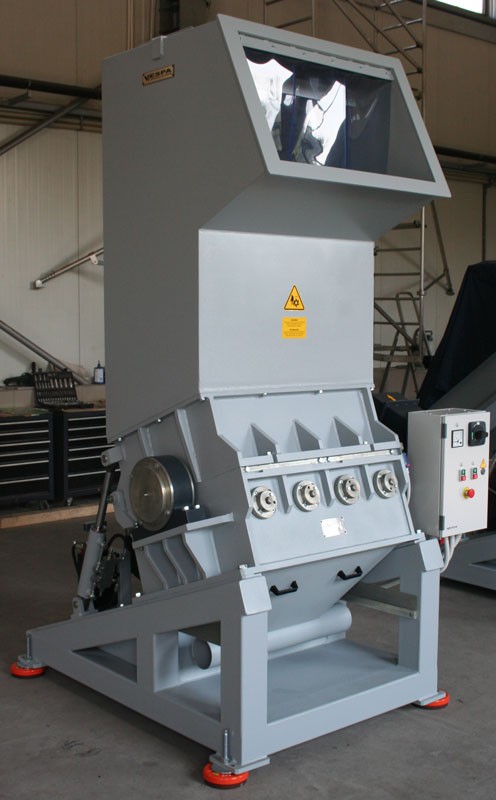

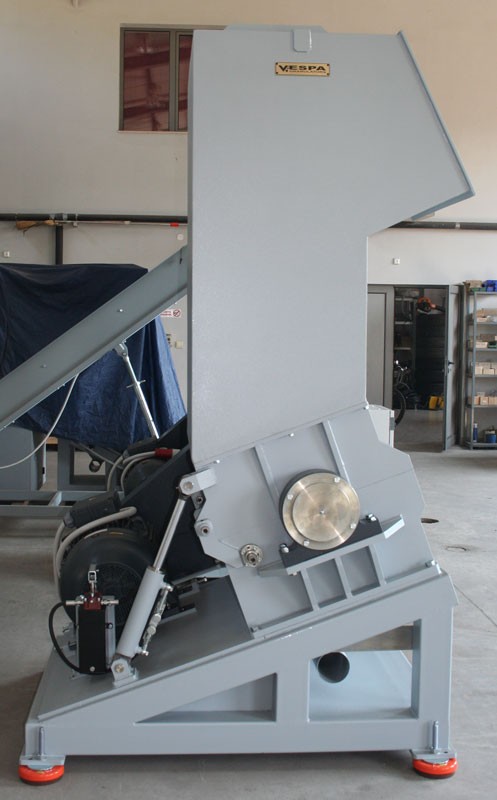

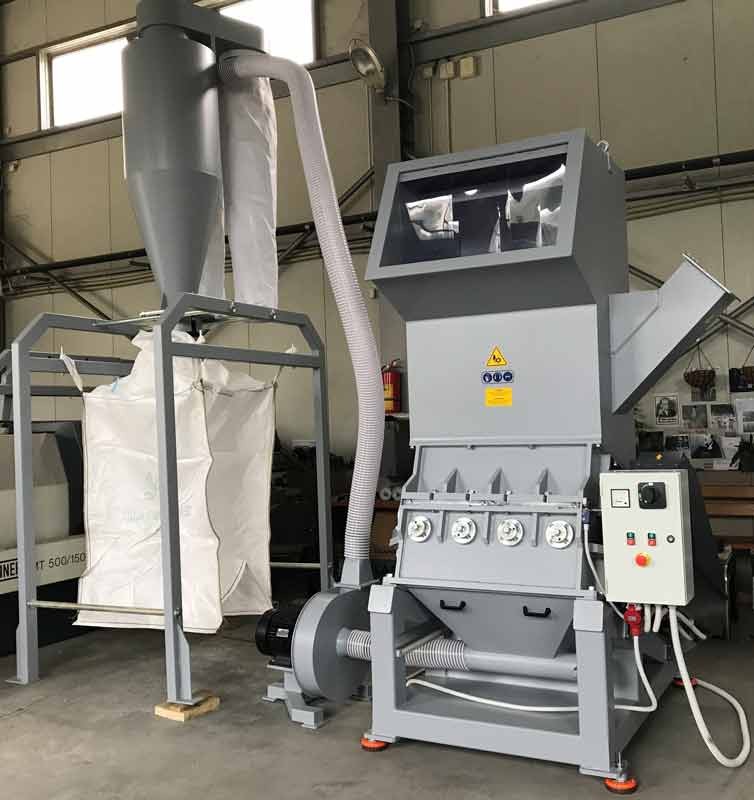

VESPA45/80VGA
Model VESPA45/80VGA
OUTPUT* UP TO
Kg/h
400-700
ROTOR DIAMETER
mm
450
ROTOR KNIVES
pcs. x mm
6x400
STATOR KNIVES
pcs. x mm
4x400
POWER
kW
37.0
WEIGHT
Kg
2560
Sizes(mm)
A
1620
B
1490
C
2690
D
2115
E
820
F
530
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA45/80VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 400-700 | |
| ROTOR DIAMETER | mm | 450 | |
| ROTOR KNIVES | pcs. x mm | 6x400 | |
| STATOR KNIVES | pcs. x mm | 4x400 | |
| POWER | kW | 37.0 | |
| WEIGHT | Kg | 2560 | |
| Sizes(mm) | |
|---|---|
| A | 1620 |
| B | 1490 |
| C | 2690 |
| D | 2115 |
| E | 820 |
| F | 530 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment

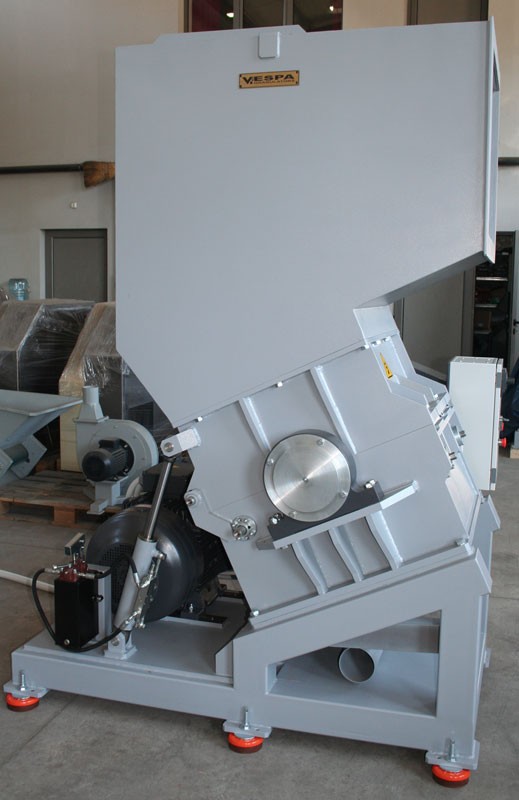

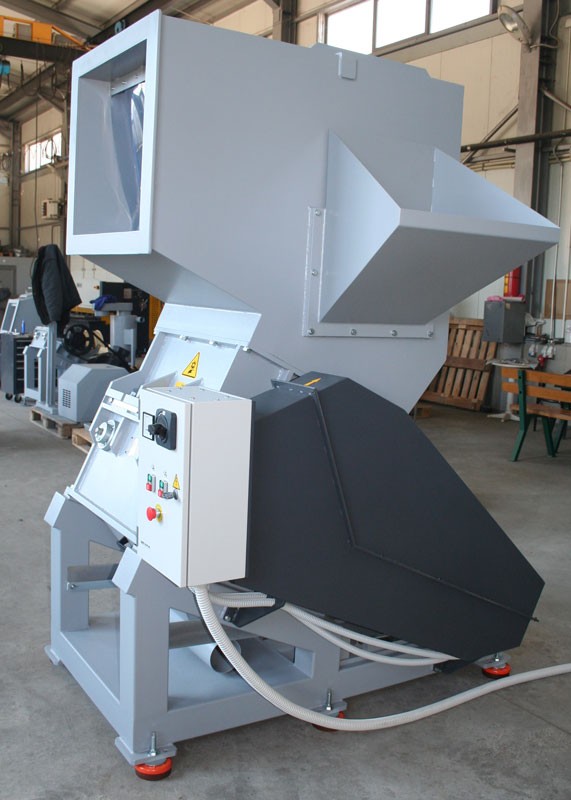

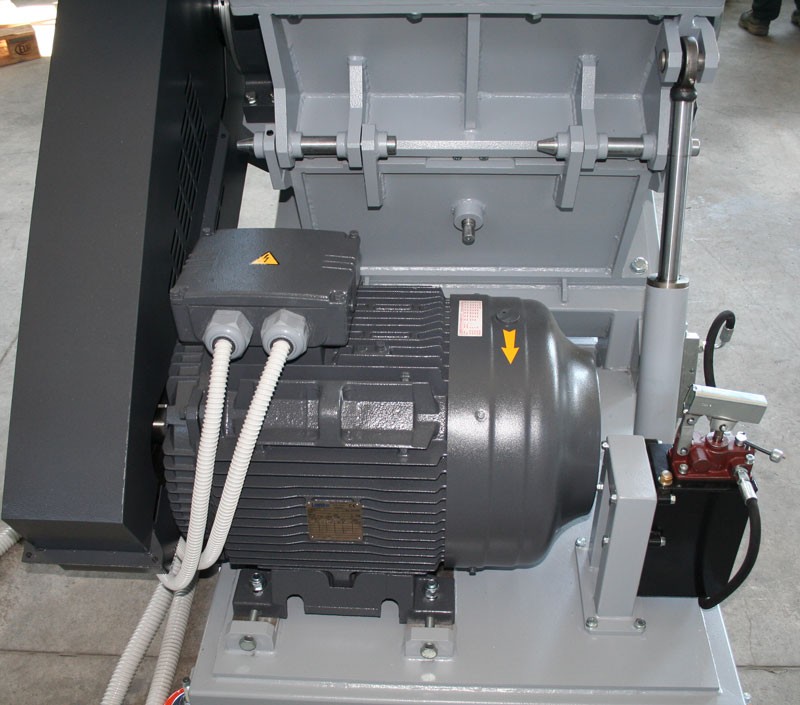

VESPA50/60VGA
Model VESPA50/60VGA
OUTPUT* UP TO
Kg/h
350-600
ROTOR DIAMETER
mm
500
ROTOR KNIVES
pcs. x mm
6x300
STATOR KNIVES
pcs. x mm
4x300
POWER
kW
37.0
WEIGHT
Kg
2480
Sizes(mm)
A
1730
B
1300
C
2855
D
2260
E
620
F
650
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA50/60VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 350-600 | |
| ROTOR DIAMETER | mm | 500 | |
| ROTOR KNIVES | pcs. x mm | 6x300 | |
| STATOR KNIVES | pcs. x mm | 4x300 | |
| POWER | kW | 37.0 | |
| WEIGHT | Kg | 2480 | |
| Sizes(mm) | |
|---|---|
| A | 1730 |
| B | 1300 |
| C | 2855 |
| D | 2260 |
| E | 620 |
| F | 650 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
VESPA50/80VGA
Model VESPA50/80VGA
OUTPUT* UP TO
Kg/h
500-800
ROTOR DIAMETER
mm
500
ROTOR KNIVES
pcs. x mm
6x400
STATOR KNIVES
pcs. x mm
4x400
POWER
kW
45.0
WEIGHT
Kg
3800
Sizes(mm)
A
2340
B
1630
C
3315
D
2620
E
820
F
650
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA50/80VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 500-800 | |
| ROTOR DIAMETER | mm | 500 | |
| ROTOR KNIVES | pcs. x mm | 6x400 | |
| STATOR KNIVES | pcs. x mm | 4x400 | |
| POWER | kW | 45.0 | |
| WEIGHT | Kg | 3800 | |
| Sizes(mm) | |
|---|---|
| A | 2340 |
| B | 1630 |
| C | 3315 |
| D | 2620 |
| E | 820 |
| F | 650 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
VESPA50/100VGA
Model VESPA50/100VGA
OUTPUT* UP TO
Kg/h
700-900
ROTOR DIAMETER
mm
500
ROTOR KNIVES
pcs. x mm
6x500
STATOR KNIVES
pcs. x mm
4x500
POWER
kW
55.0
WEIGHT
Kg
5300
Sizes(mm)
A
2340
B
1830
C
3315
D
2620
E
1020
F
650
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA50/100VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 700-900 | |
| ROTOR DIAMETER | mm | 500 | |
| ROTOR KNIVES | pcs. x mm | 6x500 | |
| STATOR KNIVES | pcs. x mm | 4x500 | |
| POWER | kW | 55.0 | |
| WEIGHT | Kg | 5300 | |
| Sizes(mm) | |
|---|---|
| A | 2340 |
| B | 1830 |
| C | 3315 |
| D | 2620 |
| E | 1020 |
| F | 650 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
VESPA50/120VGA
Model VESPA50/120VGA
OUTPUT* UP TO
Kg/h
700-1100
ROTOR DIAMETER
mm
500
ROTOR KNIVES
pcs. x mm
6x600
STATOR KNIVES
pcs. x mm
4x400
POWER
kW
75.0
WEIGHT
Kg
6900
Sizes(mm)
A
2400
B
2070
C
3315
D
2620
E
1220
F
650
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
| Model | VESPA50/120VGA | ||
|---|---|---|---|
| OUTPUT* UP TO | Kg/h | 700-1100 | |
| ROTOR DIAMETER | mm | 500 | |
| ROTOR KNIVES | pcs. x mm | 6x600 | |
| STATOR KNIVES | pcs. x mm | 4x400 | |
| POWER | kW | 75.0 | |
| WEIGHT | Kg | 6900 | |
| Sizes(mm) | |
|---|---|
| A | 2400 |
| B | 2070 |
| C | 3315 |
| D | 2620 |
| E | 1220 |
| F | 650 |
*Output values are approximate only and are dependent upon your specific application.Variables
such as material type, form and temperature, feed method, rotor configuration, knife sharpness
and design, screen size, as well as evacuation system configuration all contribute to the overall
capability of the equipment
